The slim VESA Quick Release Monitor Plate fits to the back of your VESA 75/100mm monitor taking up little space, only adding 10mm/0.39″. This allows you to use much smaller storage/transport cases while keeping setup and take-down time to a minimum.
It comes with a locking latch that has a “hold open” option.
QR Receiver Plate: QR Receiver Plate, Flat Head Socket 1/4-20 x 5/8 x2, Phillips Pan Head M4 x 10mm x4, M4 x12mm x 4, Red Thumbscrew (M4 x 12mm, M4 x 16mm)
QR Monitor Plate: QR Monitor Plate, Flat Head Phillips – various lengths (M4 x 10mm x4, M4 x 20mm x 4), Aluminum Spacers x4
QR Full Assembly: All the above.
FDMI VESA Mounting Compliance
Spacers and longer M4 mounting screws are provided because mounting surfaces and the final mounting method may vary. Prior to install, check mounting interface, mounting hole pattern and screw length to comply with FDMI Standards. Failure to do so may result in damage to monitor or improper mounting to support applied loads.
Supports up to 60 lb/27kg.
Solidly built with premium 6061 aircraft aluminum, Mil-Spec anodizing & stainless steel hardware.
Made in Canada. NAFTA Qualified. CETA Qualified.

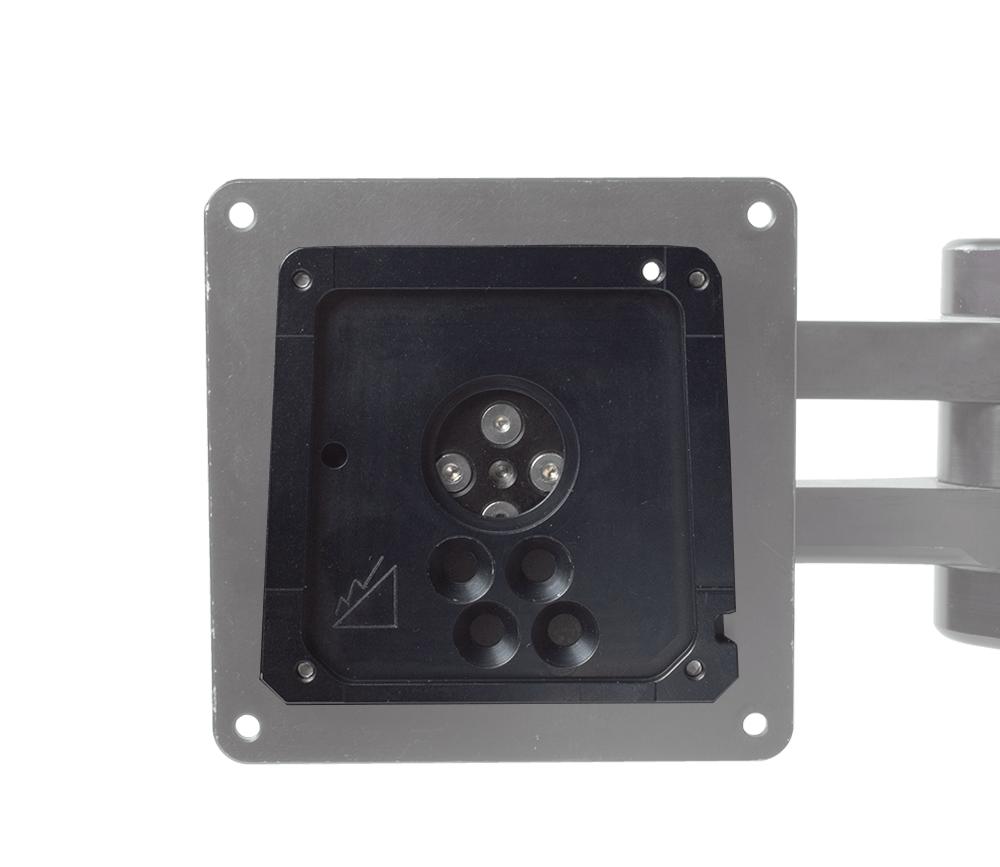

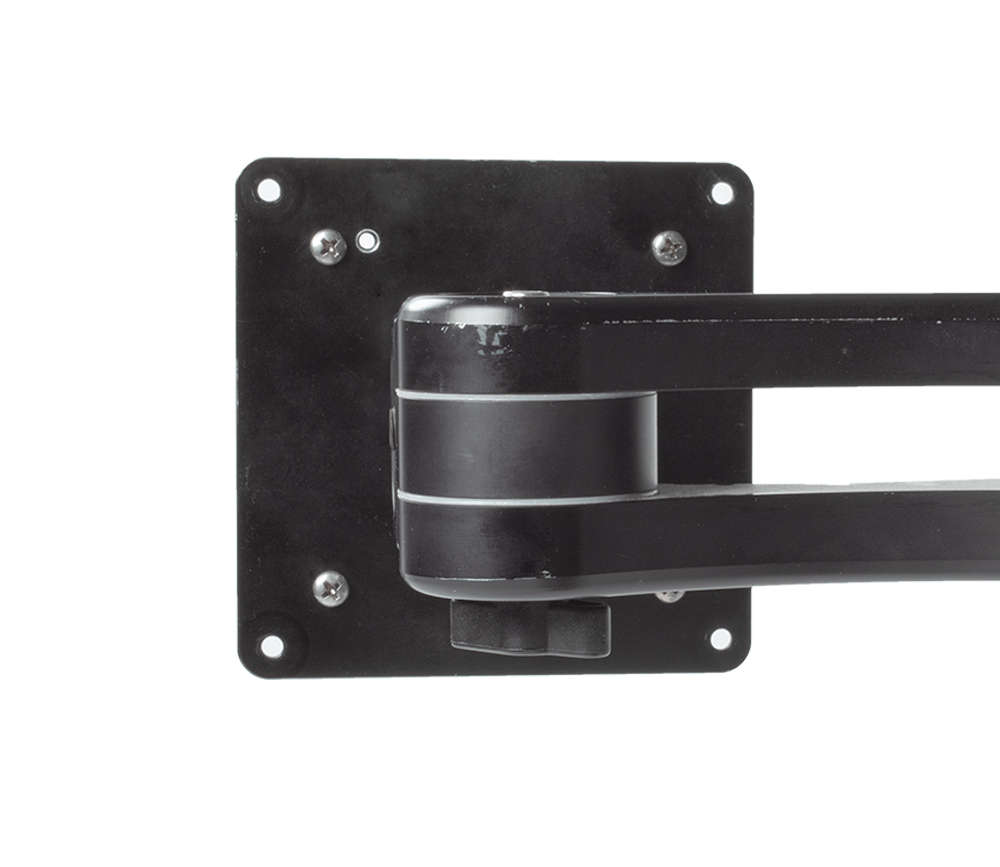

VESA 75mm Receiver QR Plate Mounting
Add further QR VESA compatibility. Quickly and securely attach the VESA Quick Release Receiver Plate to VESA 75mm compatible third party stands, brackets, arms or wall mount.
M4 x 10mm and M4 x 12mm screws are provided to accommodate third party monitor plate mounting. Check third party monitor plate for compatibility, as thickness of plate will affect screw length required.
Red Safety Thumbscrew
Red Safety Thumbscrew is provided loose to accommodate potential modification of third party compatible plate. Transfer punch and drill a clearance hole to add safety thumbscrew feature.
Contact Upgrade Innovations for further details.
1/4-20 Flat Head Mounting Pattern
Mount QR Receiver Plate via included 1/4-20 Flat Head Socket Screws to Upgrade Innovations 5/8″ Spigot Hinge assemblies or to the Whaley Rail – Rail Clamp.
Upgrading your Upgrade Innovations VESA Monitor Mount?
To upgrade your Upgrade Innovations VESA Monitor Mount to 5/8″ Spigot with Quick Release compatibility, consider our VESA Quick Release Mount Adapter.
