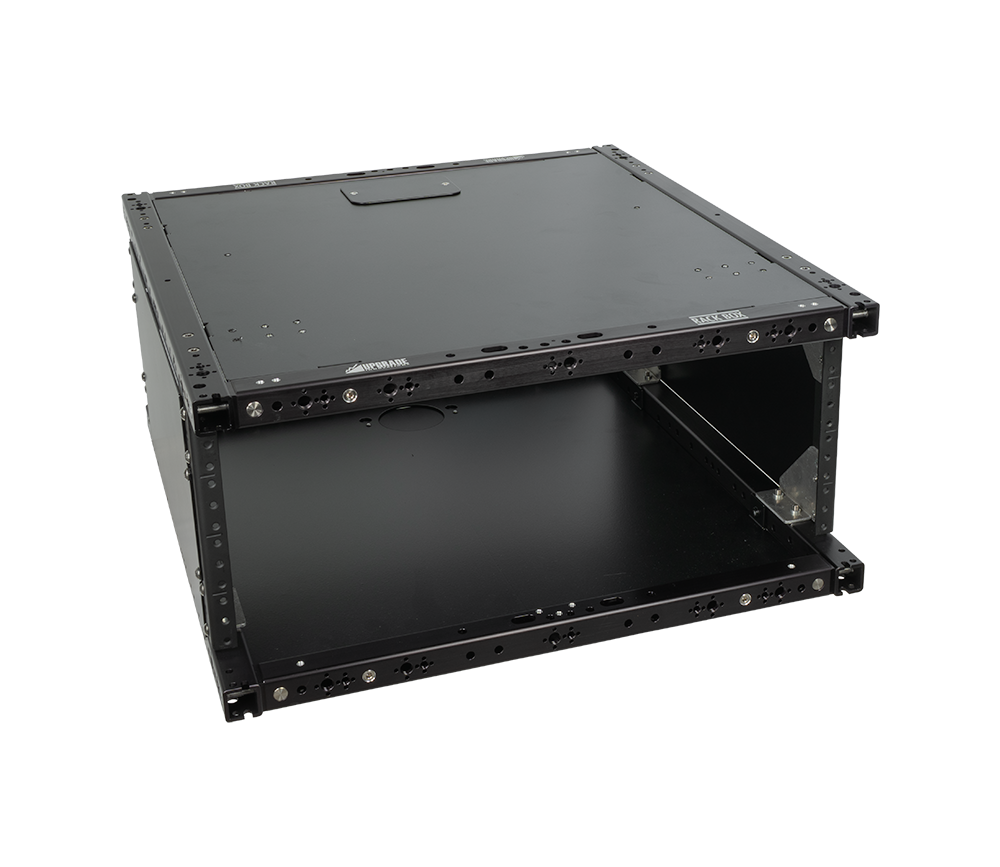

4U Rack Box 17, black 19 inch rack enclosure with 1 inch square tubing frame and side panels, front angled view
4U Rack Box 17, black 19 inch rack enclosure with 1 inch square tubing frame and side panels, front angled view
4U Rack Box 17 dimension drawing: 19.5 inch width, 20.6 inch length, 9.42 inch height

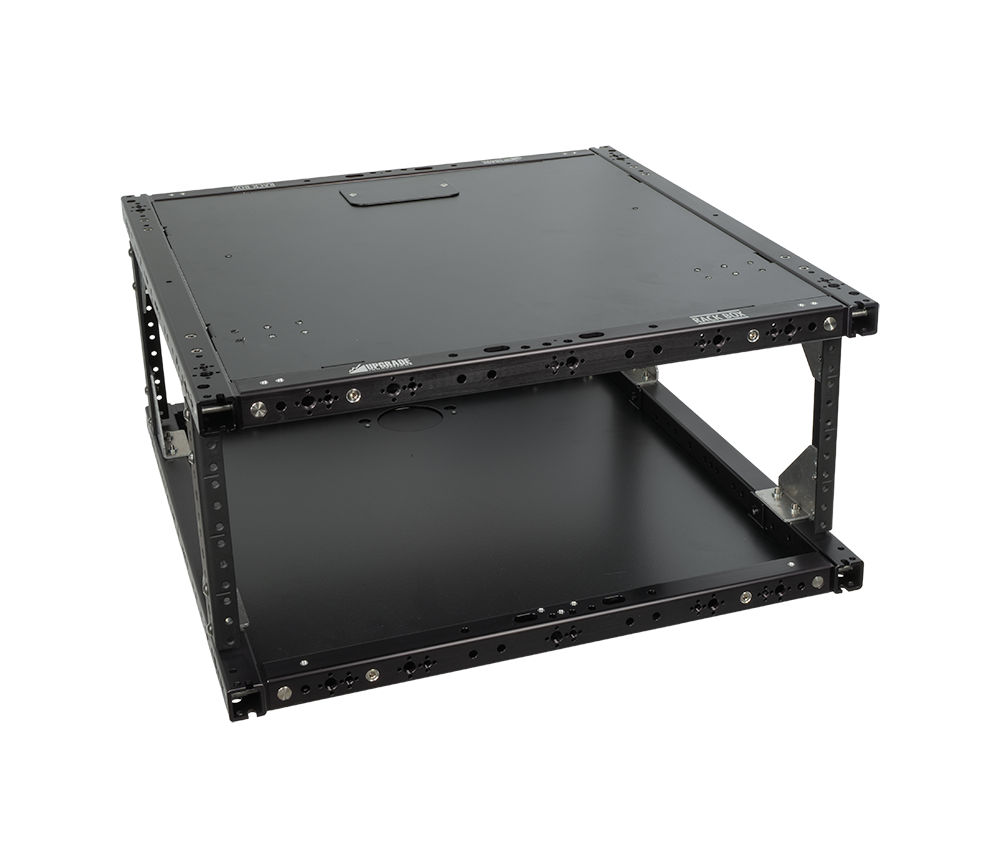

4U Rack Box 17 with side panels removed showing the open tubing frame, angled view

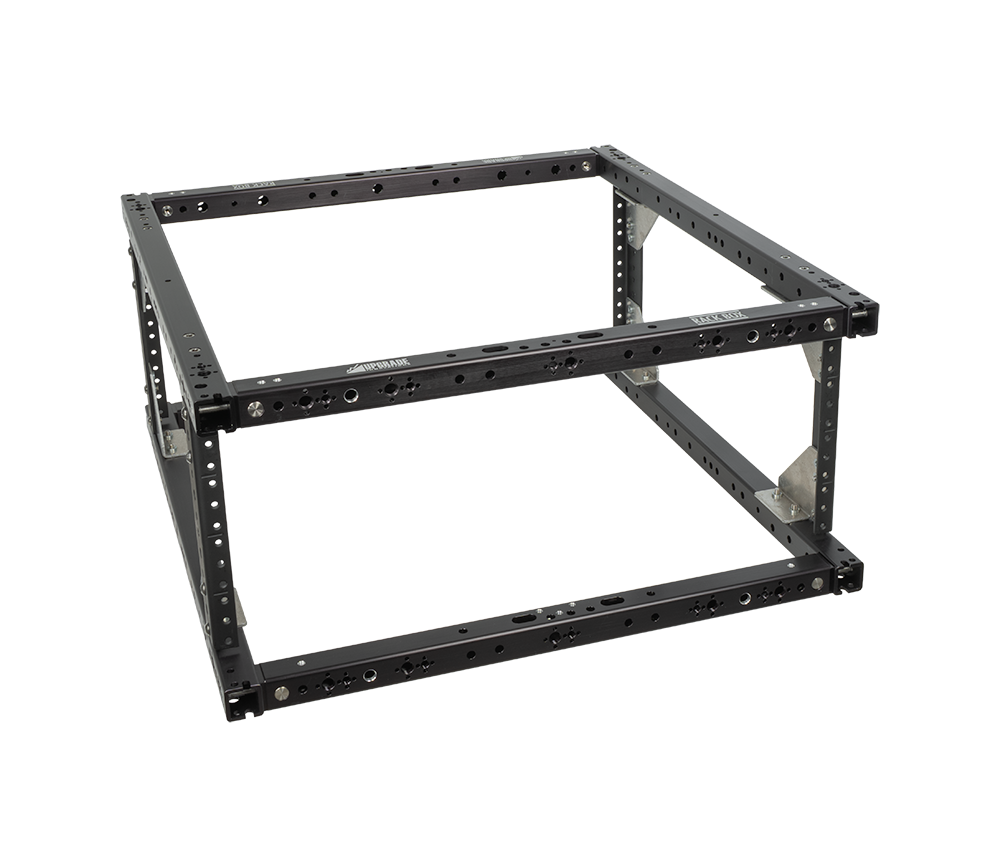

4U Rack Box 17 bare frame with all panels removed, showing the rack rails and ARRI pin-loc tubing

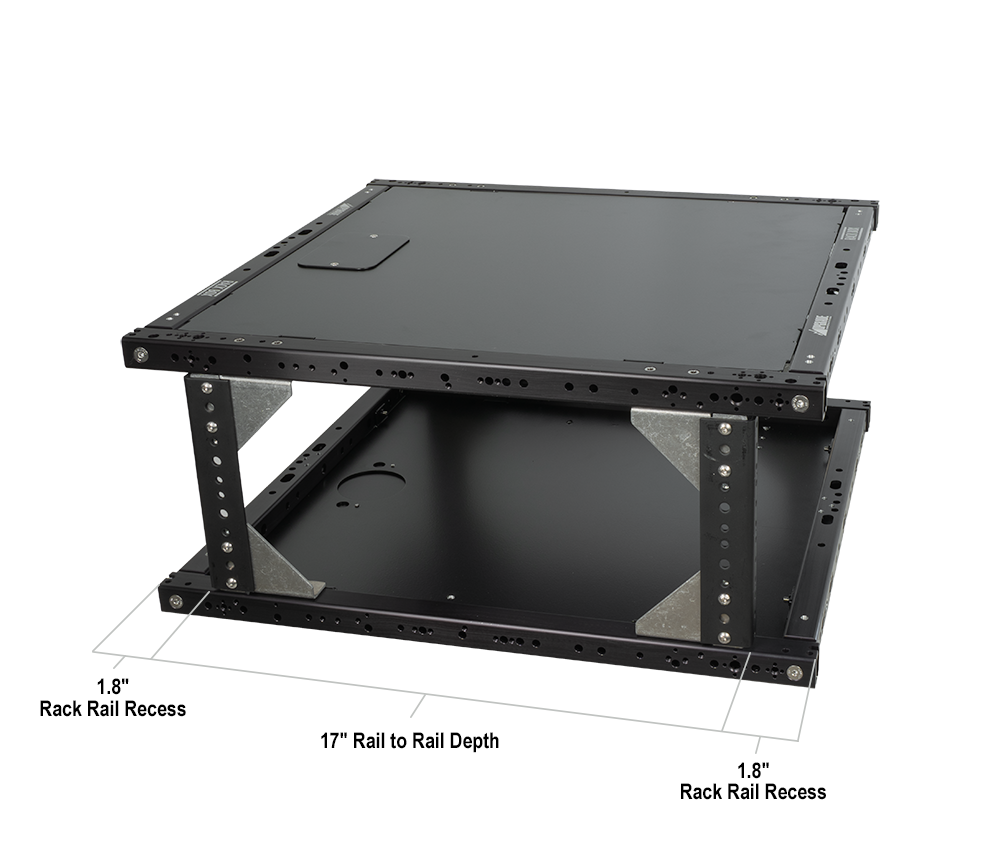

4U Rack Box 17 dimension drawing showing the 17 inch rail-to-rail depth and 1.8 inch rack rail recess
4U Rack Box 17 with top panel and cable passthrough, angled view from above
Rack Box mounted in an Apex cart under the top shelf with a power supply and rack equipment installed

4U Rack Box 17

USD$787.50

The 4U Rack Box 17 is a lightweight and low profile 19″ rack enclosure. The Rack Box frame is built out of 1″ square tubing with ARRI pin-loc mounting patterns. Side panels and panels on top and bottom are all removable for access from all sides.

10-32 threaded steel rack rails are recessed on the front and back by 1.8″ to ensure rack equipment does not protrude outside of Rack Box dimensions. The Rack Box 17 has a 17″ rail to rail mounting depth. 10-32 rack mounting screws are included.

Compatible with our Apex Wide cart, coming soon. Get in touch for compatibility details.

Rack Box Assembly Instructions

Available for pre-order. Lead time is 4–5 weeks — order now to reserve yours.

Currency
SKU: 14710 Categories: , Tag:

4U Rack Box 17 Specifications:
Rail to Rail: 17″ / 43.18cm
Rack Units: 4
Standard 19” rack width
Rack Opening Width (useable width): 17.75”
Product Weight: 7.38kg / 16.3lbs
Product Dimensions: 19.5″ W × 20.6″ L × 9.42″ H (add 0.28″ if using locating screws*)
*Two locating screws are included, mounted on the top frame’s front corners, for stacking another Rack Box on top.

Side panels and panels on top and bottom are removable for access from all sides.
The Rack Box frame is outfitted with ARRI pin-loc mounting patterns for lightweight accessories
10-32 threaded steel rack rails are recessed on the front and back by 1.8″ to ensure rack equipment does not protrude outside of Rack Box dimensions.
Top and bottom panels feature a cable passthrough hole, and provided cover plate.
Whaley Rail Clamps can be mounted to sections of the Rack Box 1″ tubing frame.
Two locating screws are included for stacking another Rack Box above. Adds 0.28″ in height when installed.
