Whaley Rail II – Rail Clamp to Quick Release VESA Plate

(1 customer review)

USD$187.50$285.00

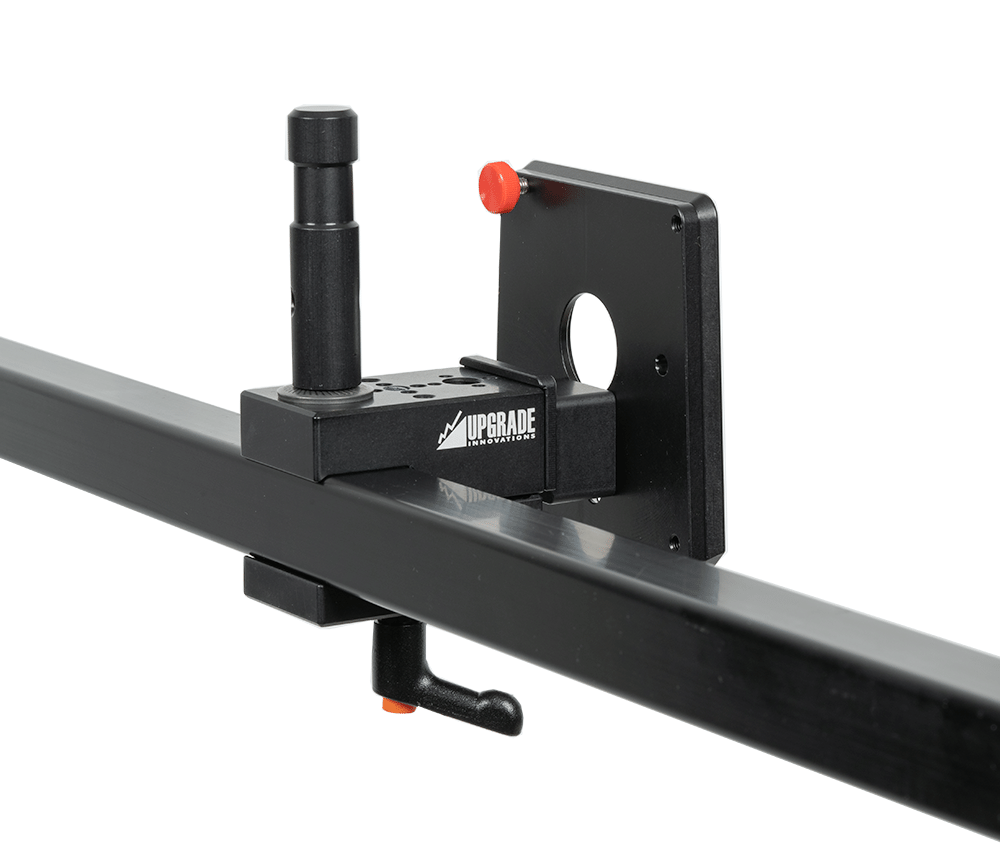

Add additional Rail Clamps to your Whaley Rail II system to mount monitors with the Upgrade Innovations Quick Release VESA Plates. Rail clamp is easily quick released and added to rail system, providing a solid clamp to our 1″ round-edge square rail. Mounting patterns include 1/4-20 and 3/8-16 on front, top and bottom of clamp for our VESA monitor plates, 5/8 Baby Pins or articulating arms.

New option! Order the Rail Clamp with a 0.9″ keyed spacer to offset the QR VESA Plate further away from the cross rail. See below for further information in regards to this setup.

For clients that already have a monitor outfitted with our QR VESA Monitor Plate, we offer Receiver Plate Only versions.

Clear
Currency

Quick Releases off rail with two full turns of adjustable lever.

Extremely solid clamp, rated for heavy production monitors.

5/8 Baby Pins mounts via male 3/8 thread to offset or inline tapped hole on the Rail Clamp.

Rail Clamp w. Spacer

Keyed spacer adds an additional 0.9″ offset between QR plate and the cross rail.

One use case for the spacer assembly is if a client prefers to mount the Whaley Rail frame with the cross rails behind the vertical posts. The added offset from the spacer will ensure that the monitor will clear the vertical posts of the Whaley Rail frame.

Solidly built with premium 6061 aircraft aluminum, Mil-Spec anodizing & stainless steel hardware.

Made in Canada. NAFTA Qualified. CETA Qualified.
