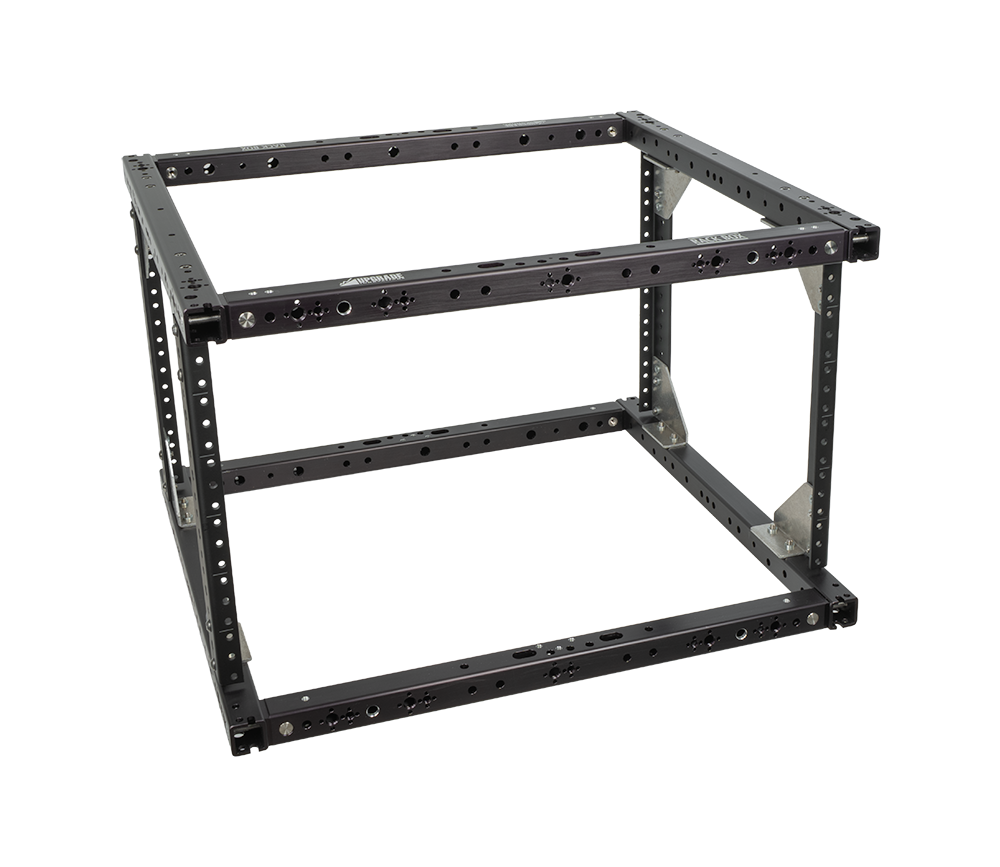

6U Rack Box 14 bare frame with all panels removed, showing the rack rails and ARRI pin-loc tubing

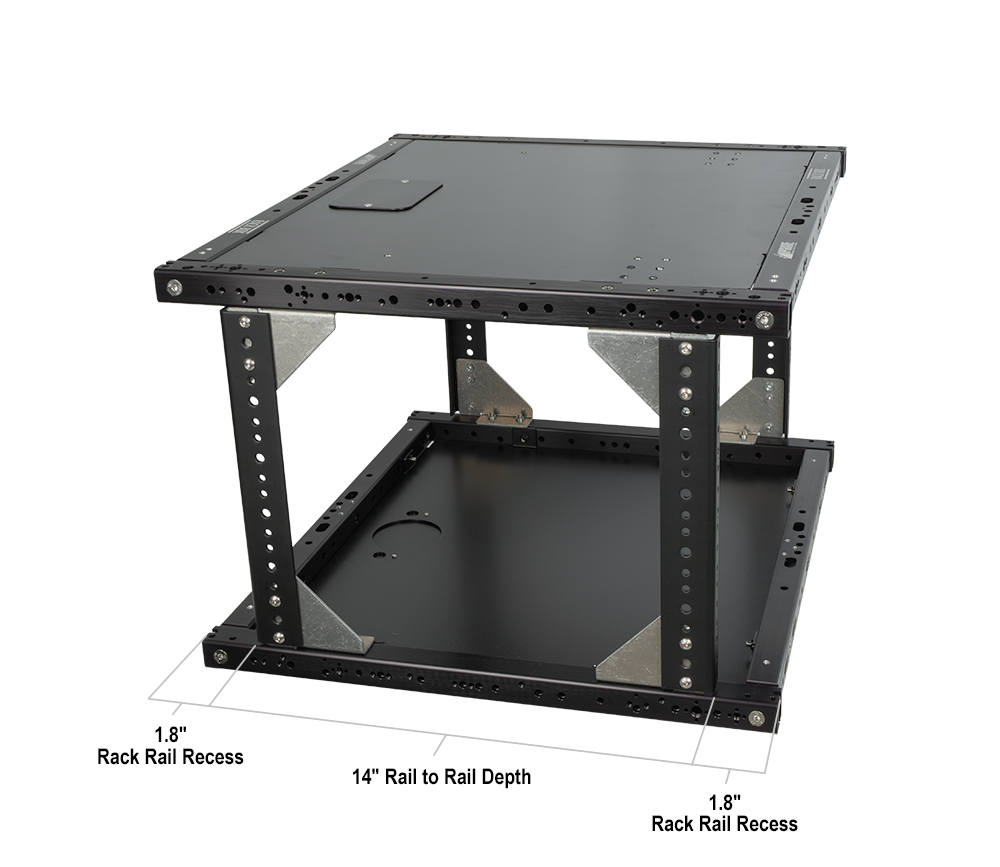

6U Rack Box 14 dimension drawing showing the 14 inch rail-to-rail depth and 1.8 inch rack rail recess

Rack Box mounted in an Apex cart under the top shelf with a power supply and rack equipment installed

6U Rack Box 14

USD$825.00

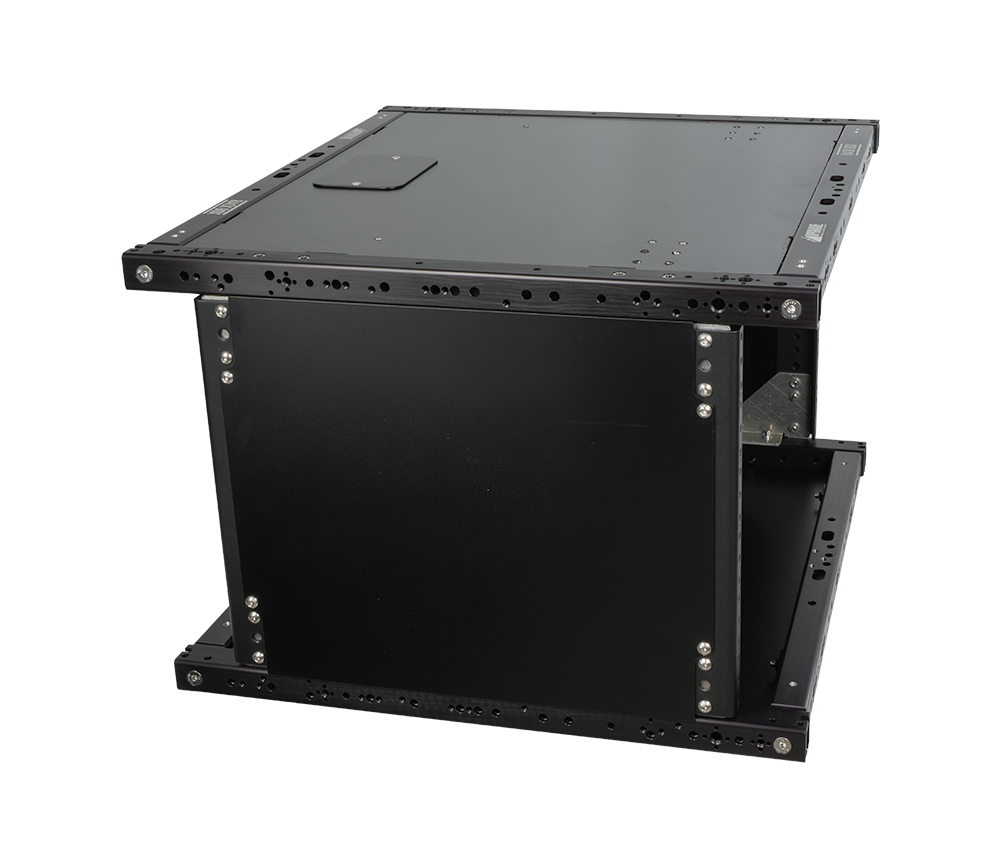

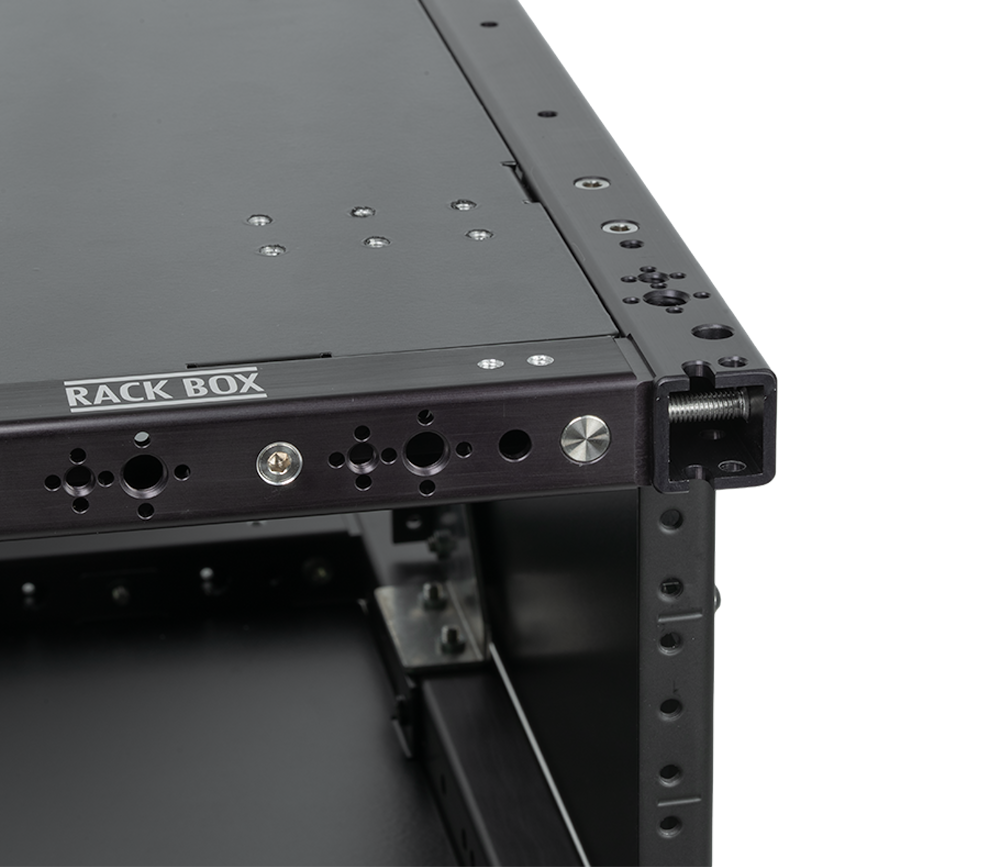

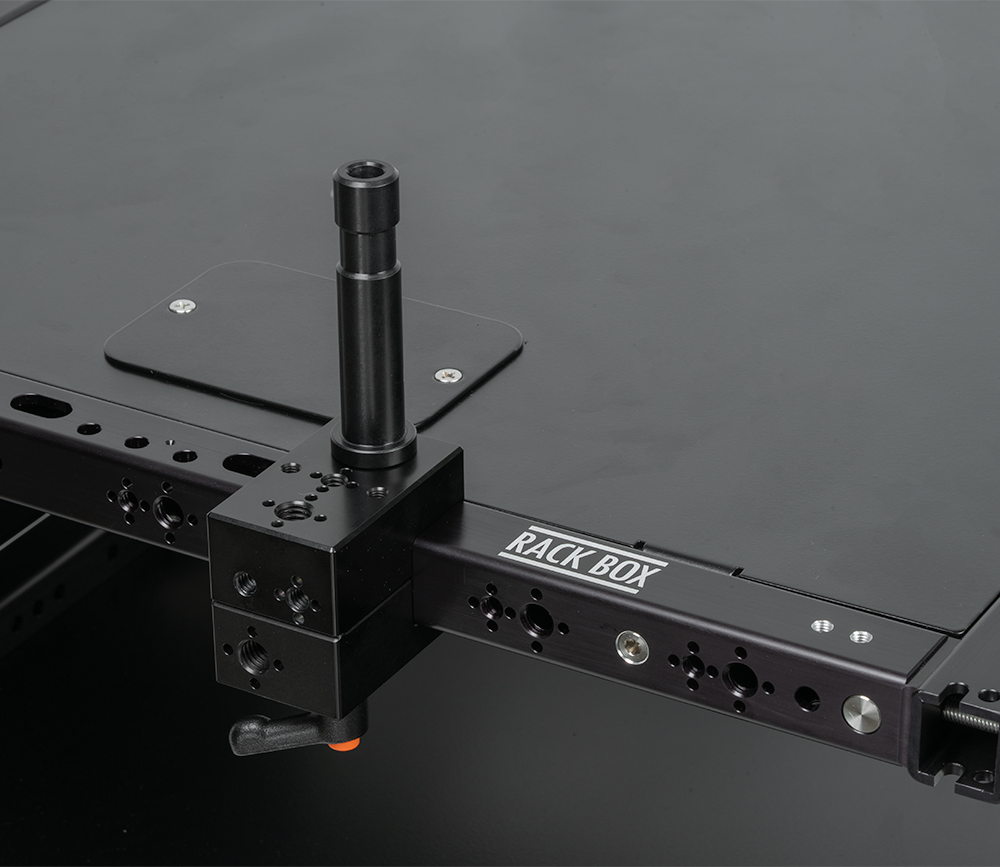

The 6U Rack Box 14 is a lightweight and low profile 19″ rack enclosure. The Rack Box frame is built out of 1″ square tubing with ARRI pin-loc mounting patterns. Side panels and panels on top and bottom are all removable for access from all sides.

10-32 threaded steel rack rails are recessed on the front and back by 1.8″ to ensure rack equipment does not protrude outside of Rack Box dimensions. The Rack Box 14 has a 14″ rail to rail mounting depth. 10-32 rack mounting screws are included.

Compatible with our Apex Wide and Apex Narrow carts, coming soon. Get in touch for compatibility details.

Rack Box Assembly Instructions

Available for pre-order. Lead time is 4–5 weeks — order now to reserve yours.

Currency

SKU: 14705 Categories: New Products, Rack Box Tag: Rack Box

6U Rack Box 14 Specifications:
Rail to Rail: 14″ / 35.56cm
Rack Units: 6
Standard 19” rack width
Rack Opening Width (useable width): 17.75”
Product Weight: 7.25kg / 16.0lbs

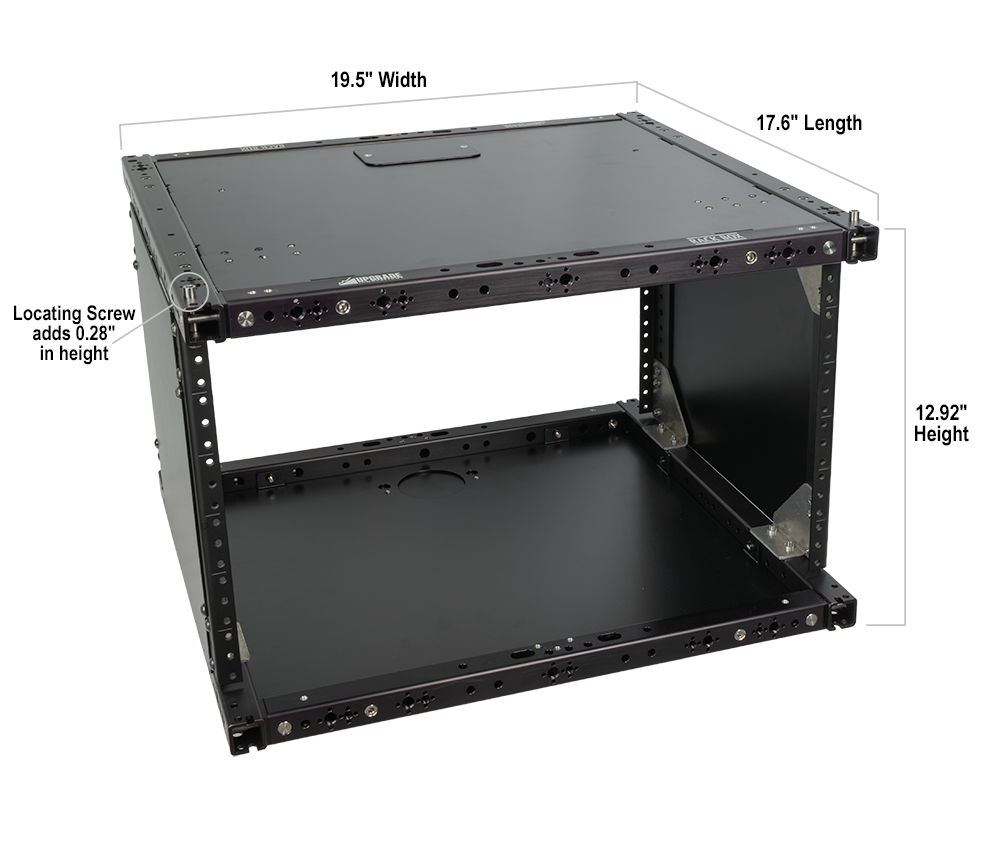

Product Dimensions: 19.5″ W × 17.6″ L × 12.92″ H (add 0.28″ if using locating screws*)

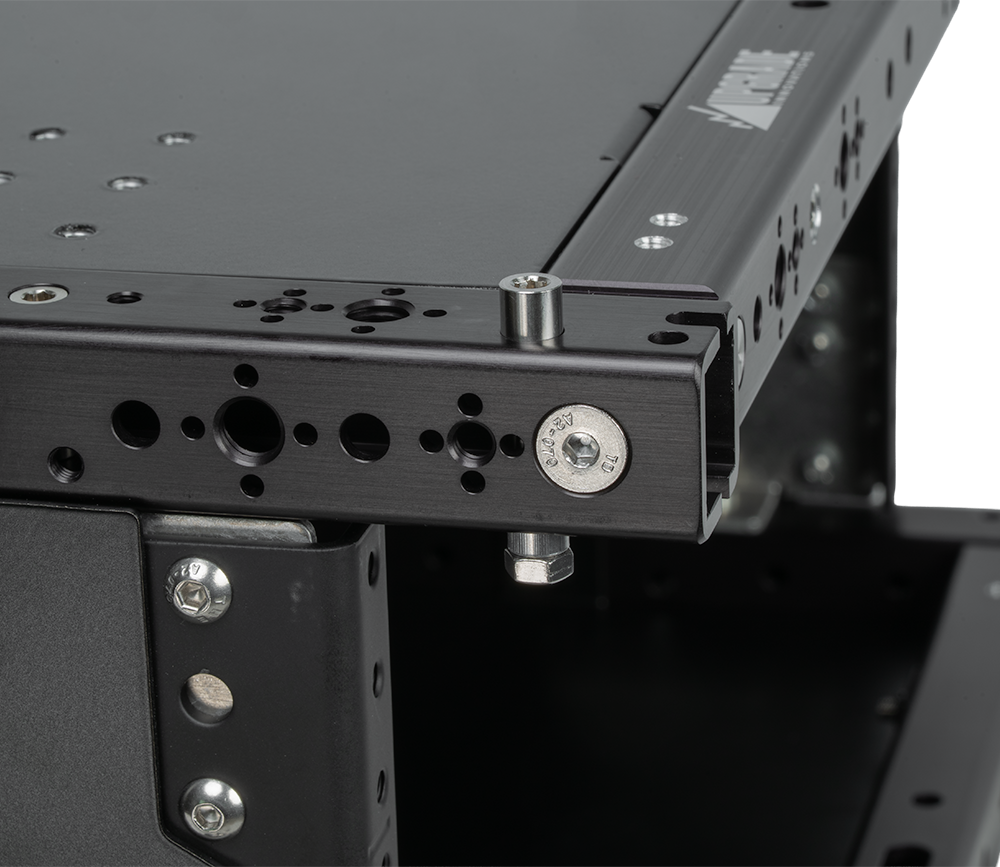

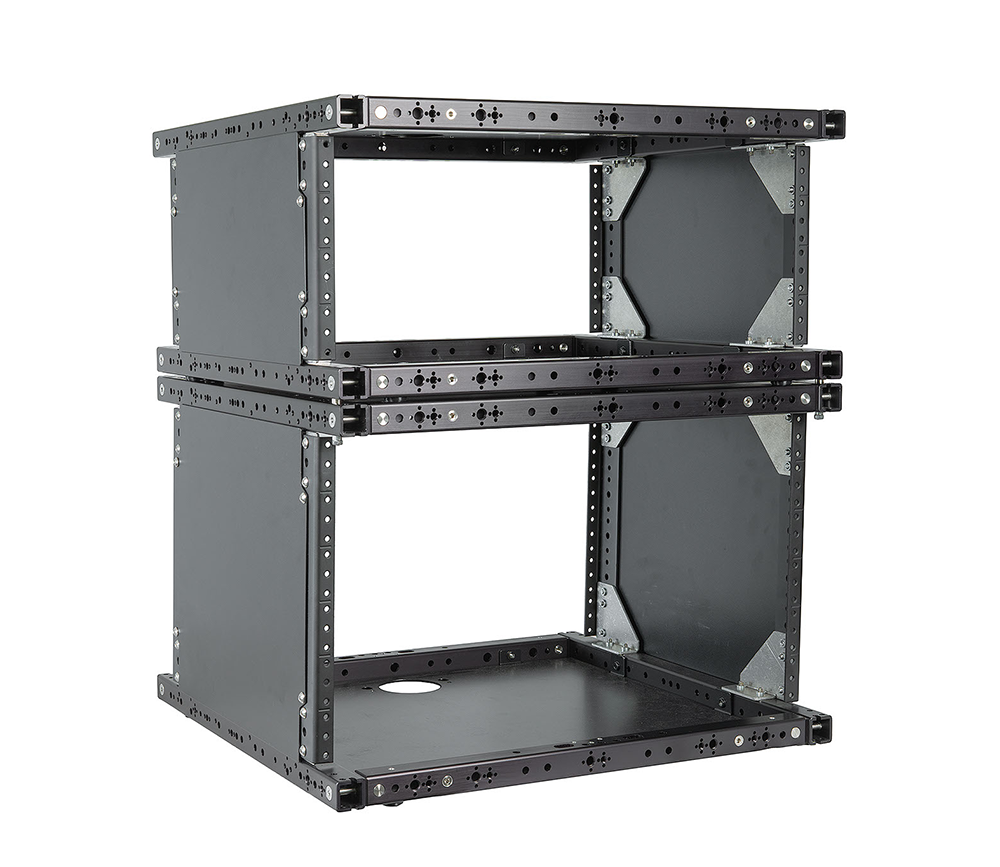

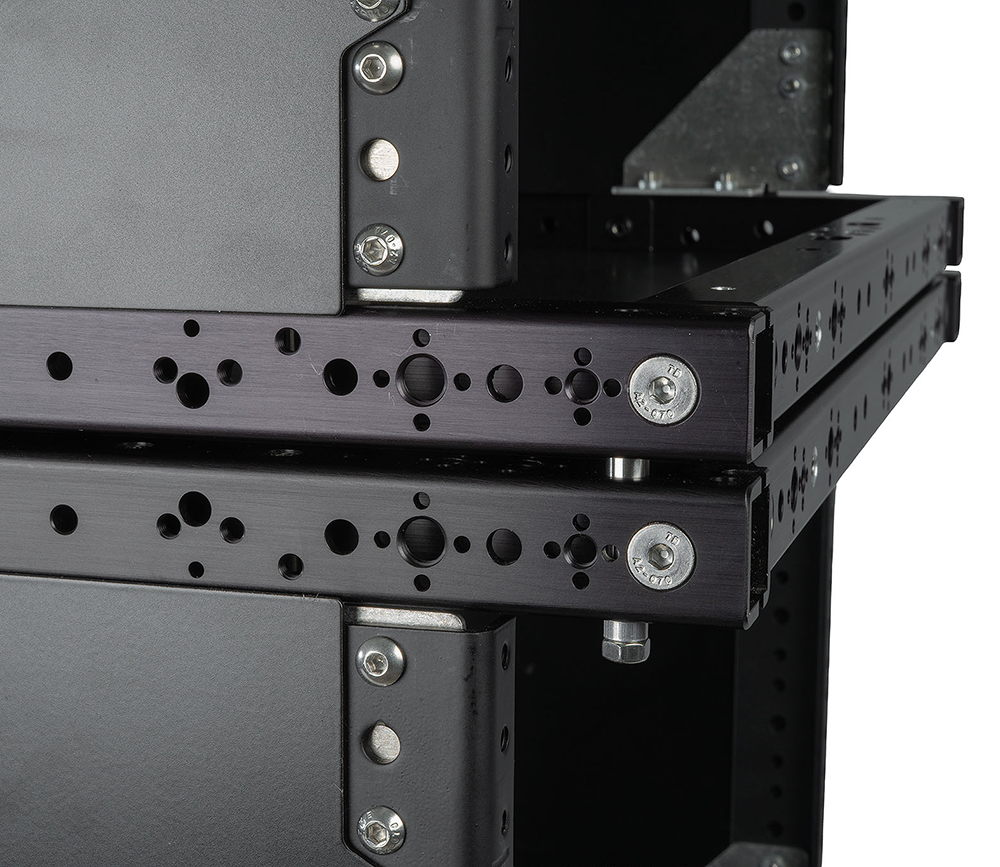

*Two locating screws are included, mounted on the top frame’s front corners, for stacking another Rack Box on top.
