4U Rack Box 14
USD$787.50

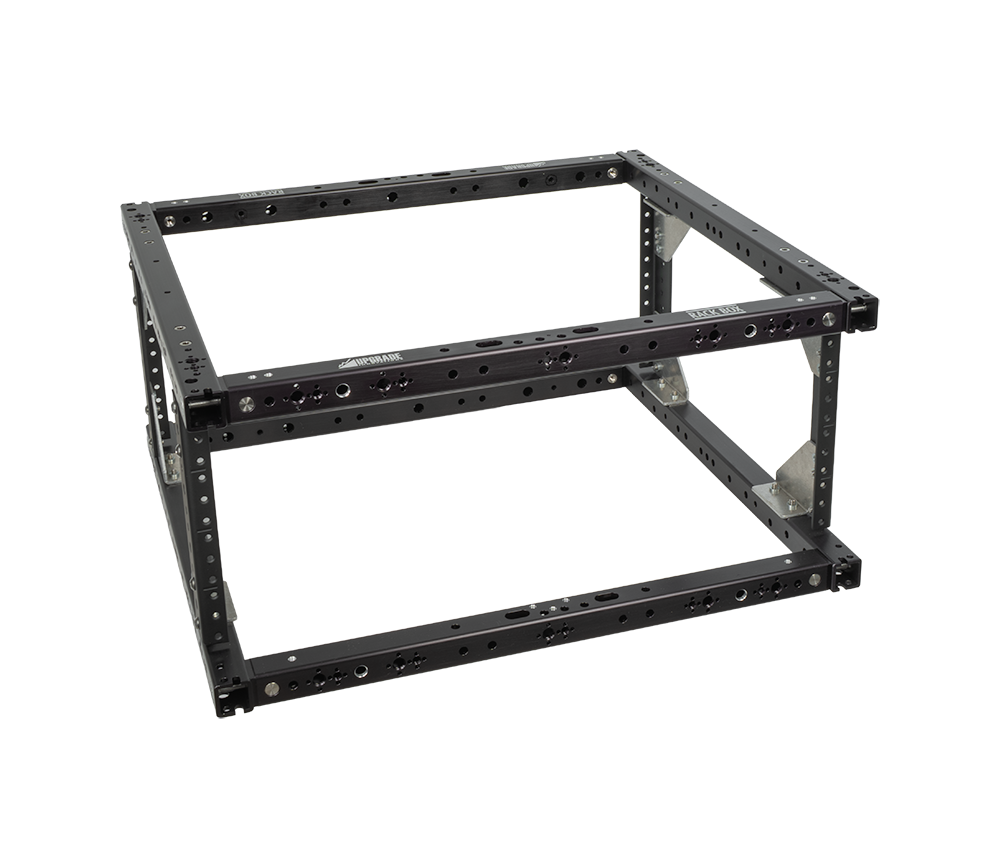

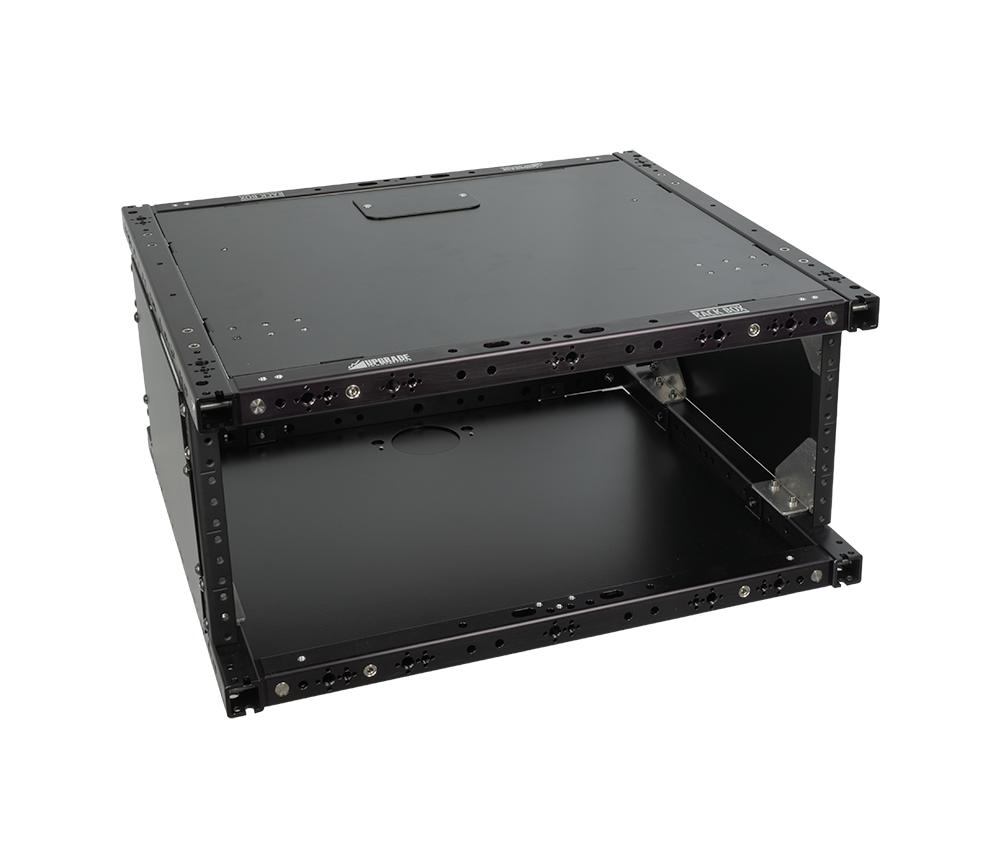

The 4U Rack Box 14 is a lightweight and low profile 19″ rack enclosure. The Rack Box frame is built out of 1″ square tubing with ARRI pin-loc mounting patterns. Side panels and panels on top and bottom are all removable for access from all sides.

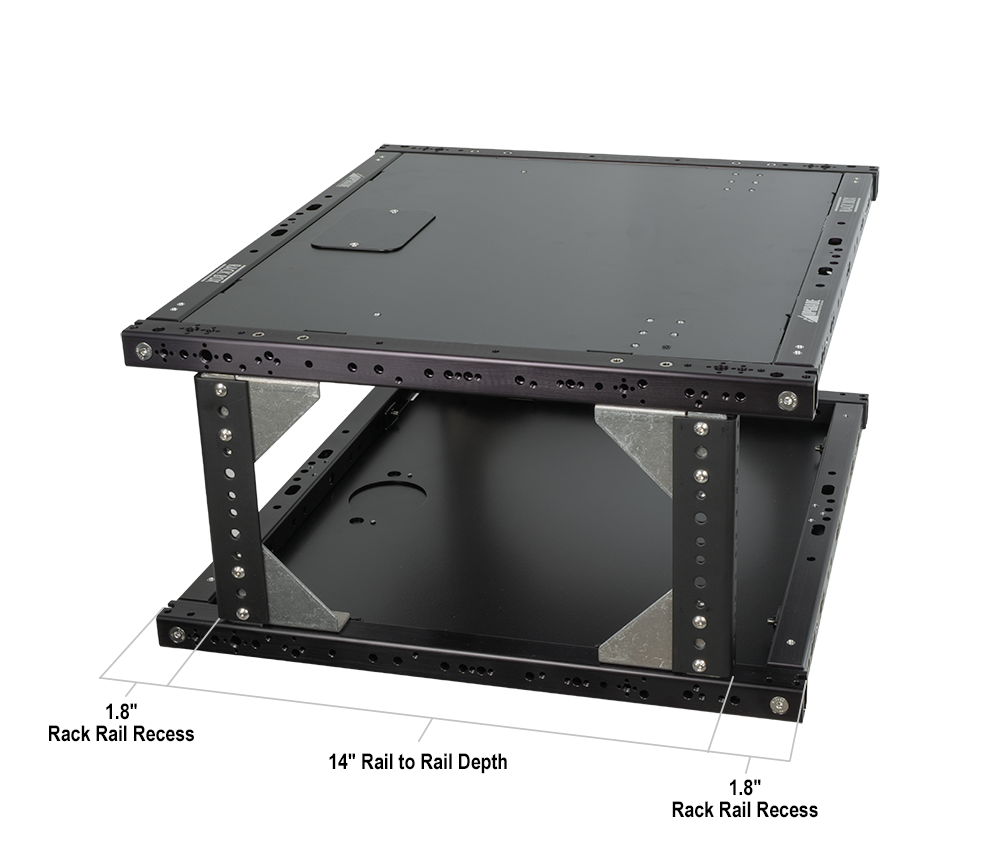

10-32 threaded steel rack rails are recessed on the front and back by 1.8″ to ensure rack equipment does not protrude outside of Rack Box dimensions. The Rack Box 14 has a 14″ rail to rail mounting depth. 10-32 rack mounting screws are included.

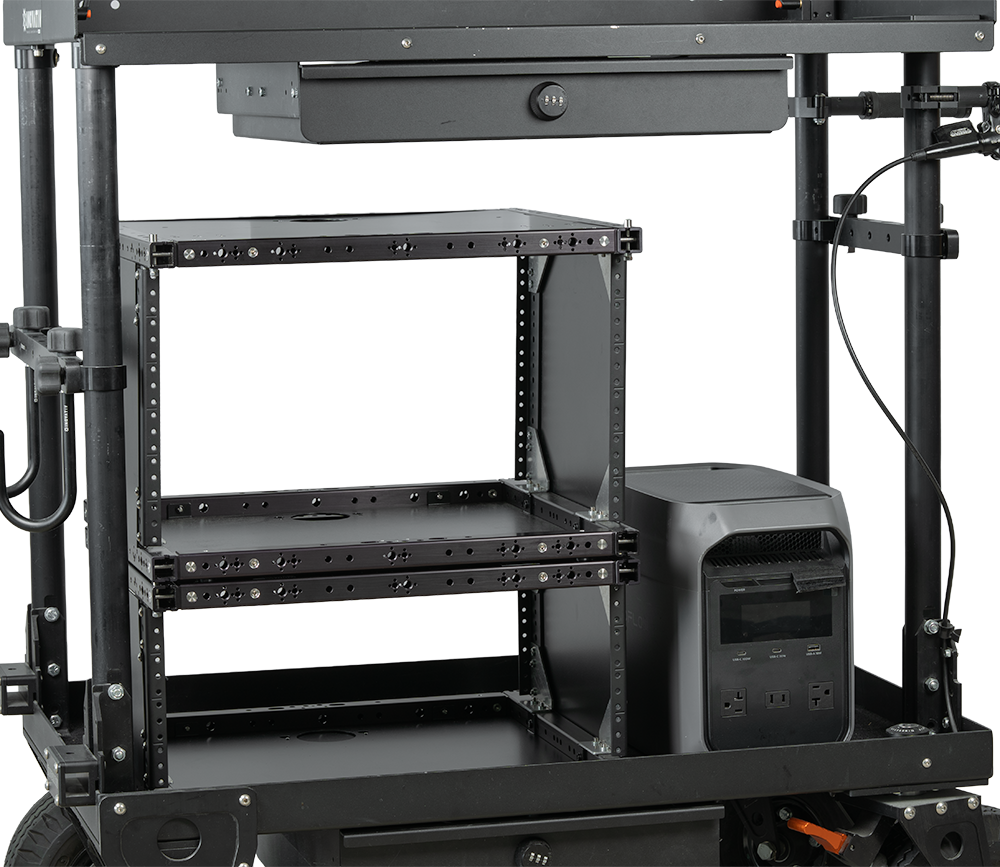

Compatible with our Apex Wide and Apex Narrow carts, coming soon. Get in touch for compatibility details.
Rack Box Assembly Instructions
Available for pre-order. Lead time is 4–5 weeks — order now to reserve yours.
4U Rack Box 14 Specifications:
Rail to Rail: 14″ / 35.56cm
Rack Units: 4
Standard 19” rack width
Rack Opening Width (useable width): 17.75”
Product Weight: 6.6kg / 14.6lbs

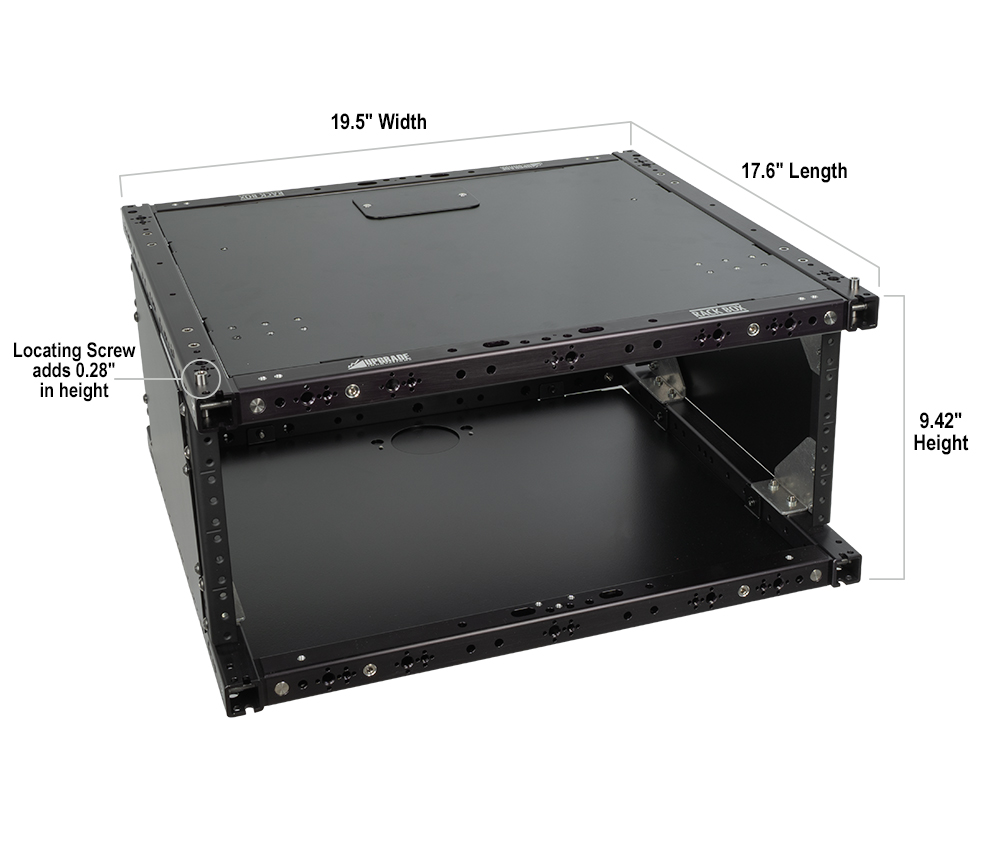

Product Dimensions: 19.5″ W × 17.6″ L × 9.42″ H (add 0.28″ if using locating screws*)
*Two locating screws are included, mounted on the top frame’s front corners, for stacking another Rack Box on top.

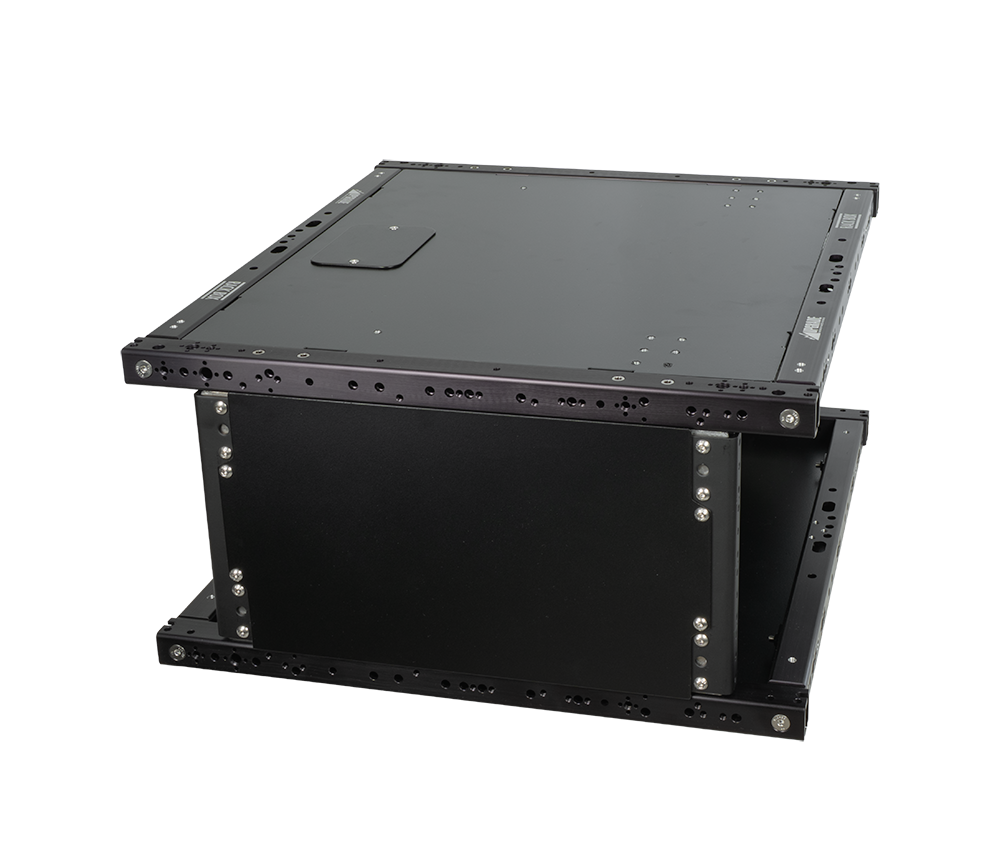

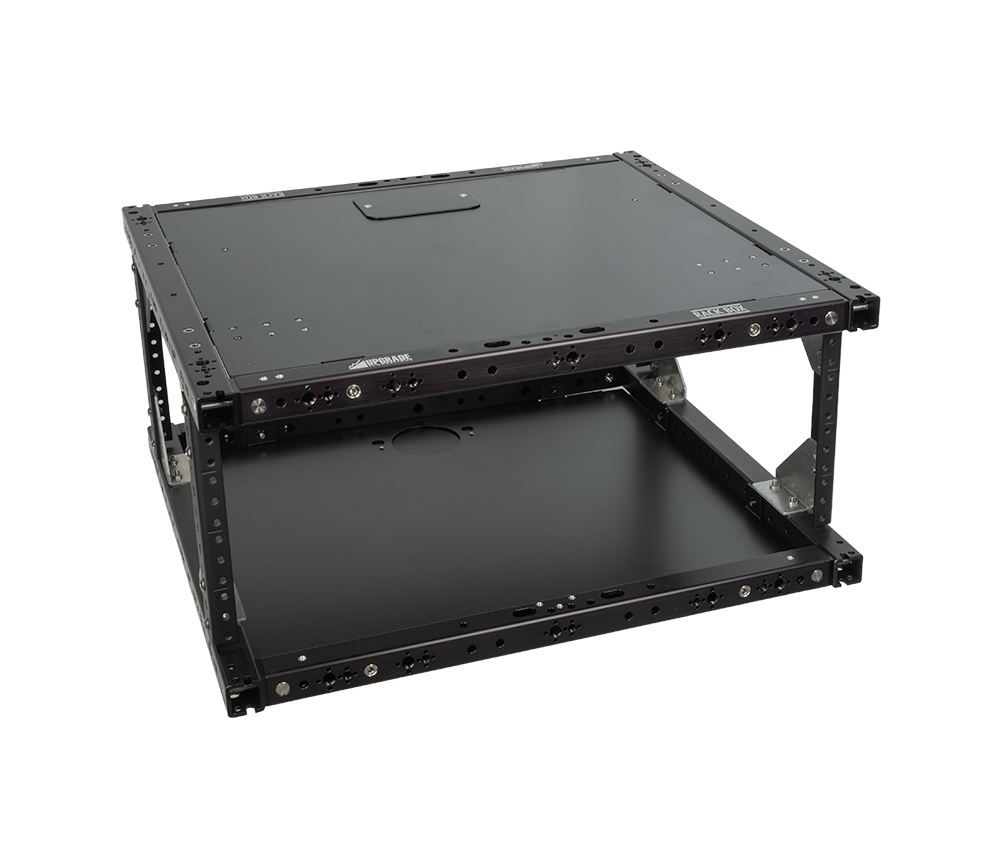

Side panels and panels on top and bottom are removable for access from all sides.
Two locating screws are included for stacking another Rack Box above. Adds 0.28″ in height when installed.
