Whaley Double Header
USD$165.00

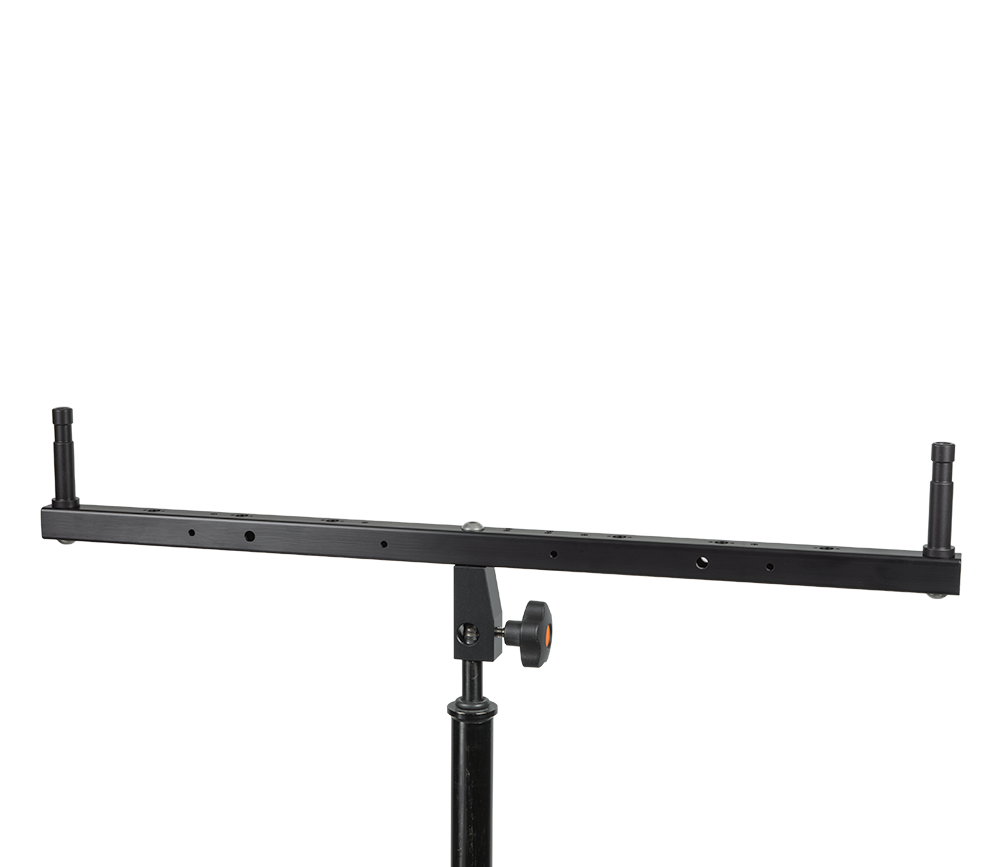

The Whaley Double Header allows users to mount accessories via our Whaley cross rail to a single baby pin anchor point. The center spigot adapter is securely mounted to the cross rail with a 3/8-16″ bolt and dowel pins for a non-twist setup.
New revised version!
– 27″ header rail length (previous was 25.7″)
– New baby pin is now pin-loc for non-twist mounting
– Center Spigot adapter can be positioned in four orientations to control Tie Down Knob position.
Whaley Header Assembly Instructions
Consider our Baby Pin Pan Lock Clamp
The Baby Pin Pan Lock Clamp (link) limits the mount from panning on the baby pin and will keep monitors in the desired orientation.
The Whaley Dual Header to Spigot Adapter makes use of our 1" cross rail from the Whaley Rail II system to accommodate accessory mounting.

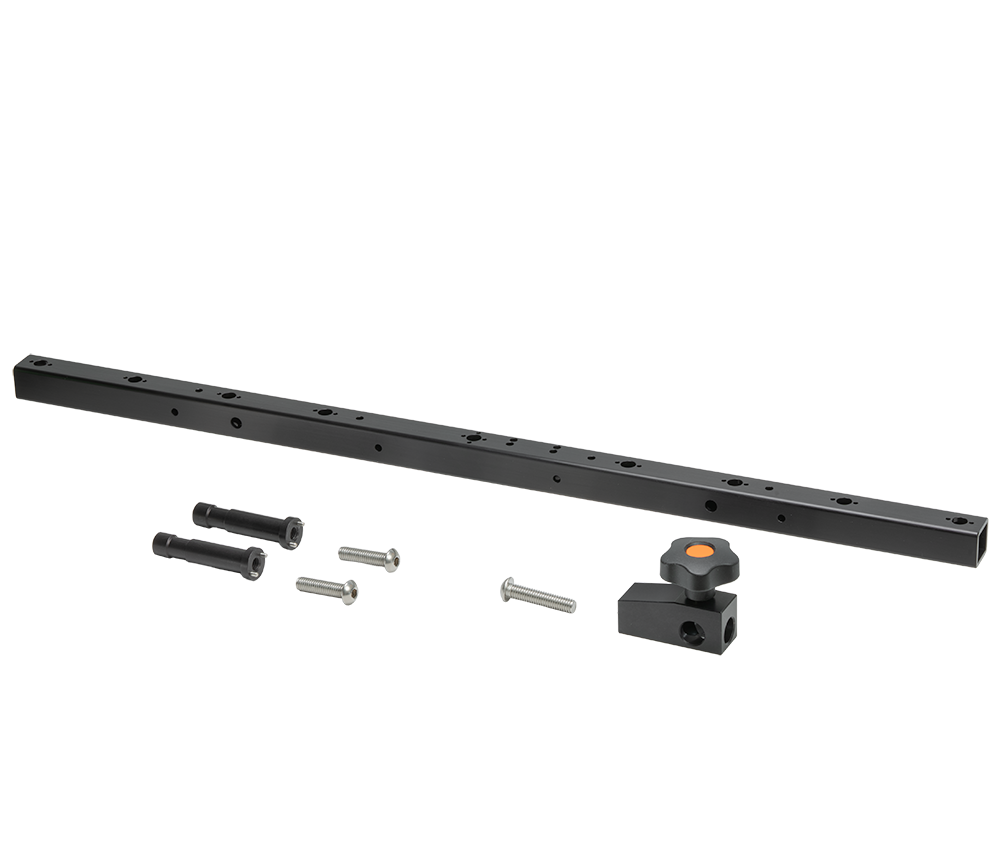

Included in Whaley Double Header:
1x Pin-Loc Spigot Adapter
1x 27" Length Cross Rail
2x 3" Baby Pin Arri 3/8" Pin-Loc Pattern with 3/8" Screw
Baby Pins can get installed via the 8x possible clearance holes in the square rail. Furthest baby pin to baby pin distance (center to center) is 25.8" apart.
Devin D. (verified owner) –
jeffrey hagerman (verified owner) –
Daniel S. (verified owner) –
Wes (verified owner) –
Sean Sweeney –
The engineering, fit, finish and versatility of this are top notch. This isn’t your typical double header. The dual rail clamps make adjustability a breeze depending on your loadout. And it flat out looks better – no unsightly reflections from an unfinished metal like most double headers. Stealth black, as it should be.
