Name: Whaley Telescoping Header
SKU: 14675
Price: 285.00 USD
Availability: InStock

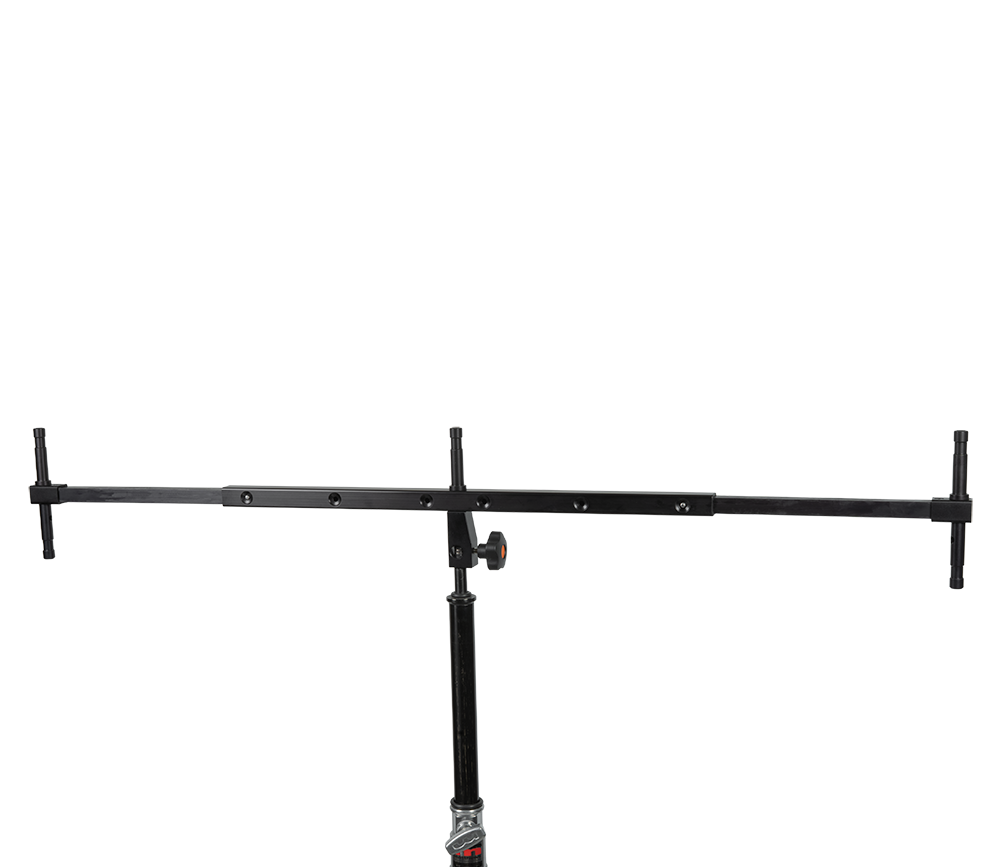

Whaley Telescoping Header at full extension on a stand with baby pins at each end, front view

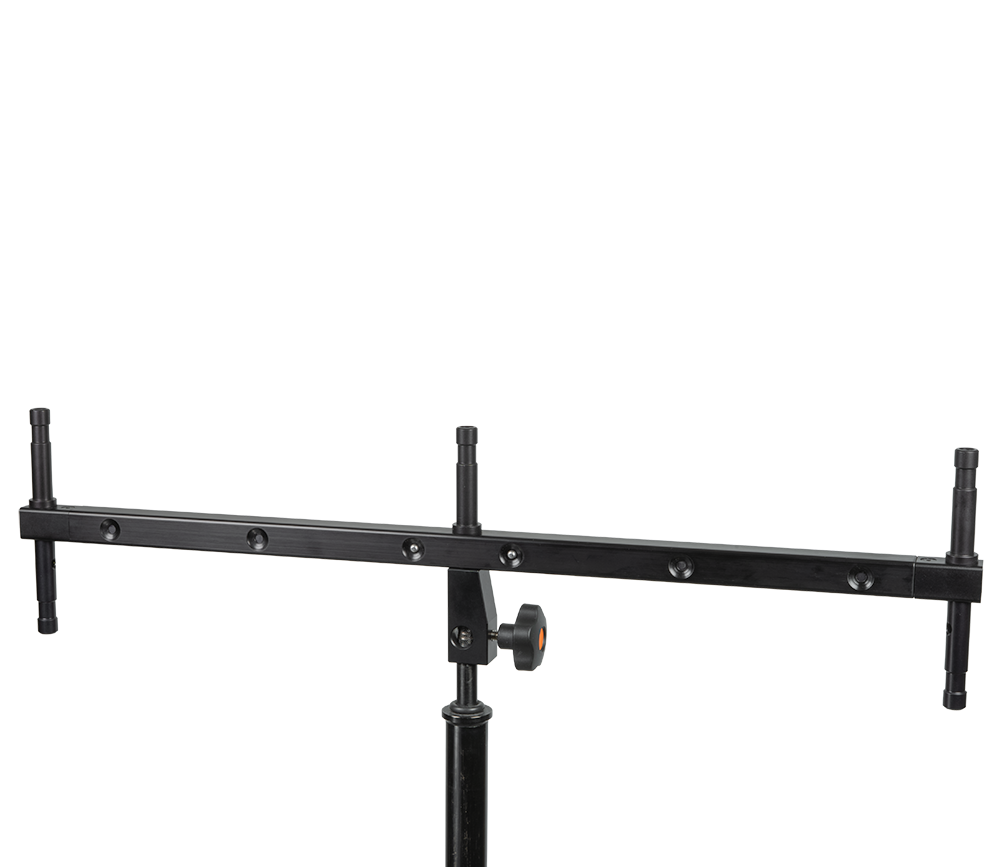

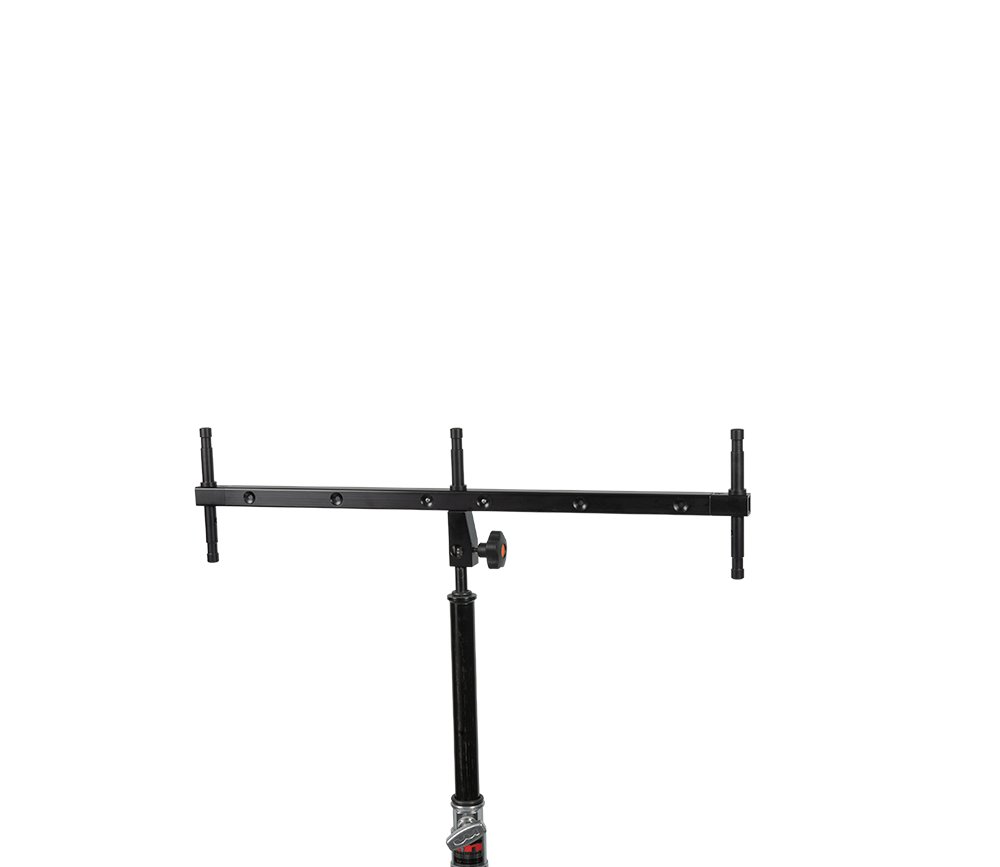

Whaley Telescoping Header on a stand, front view at a shorter extension

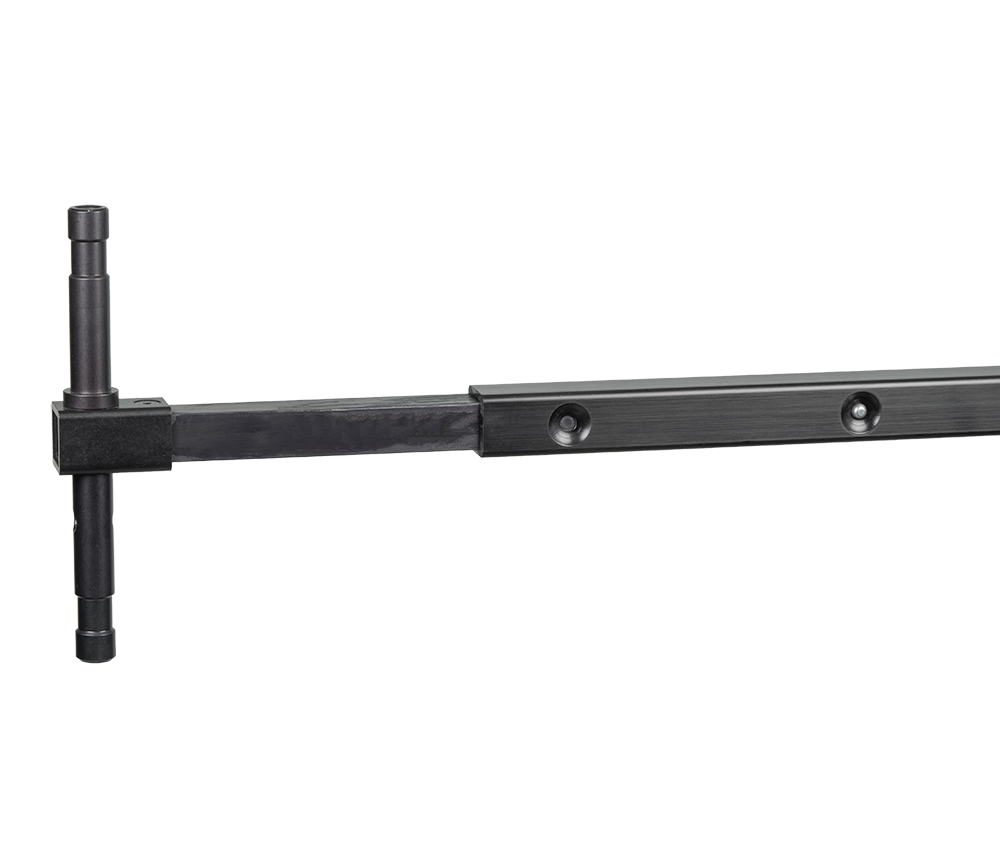

Whaley Telescoping Header on a stand, front view showing the telescoping inner rail

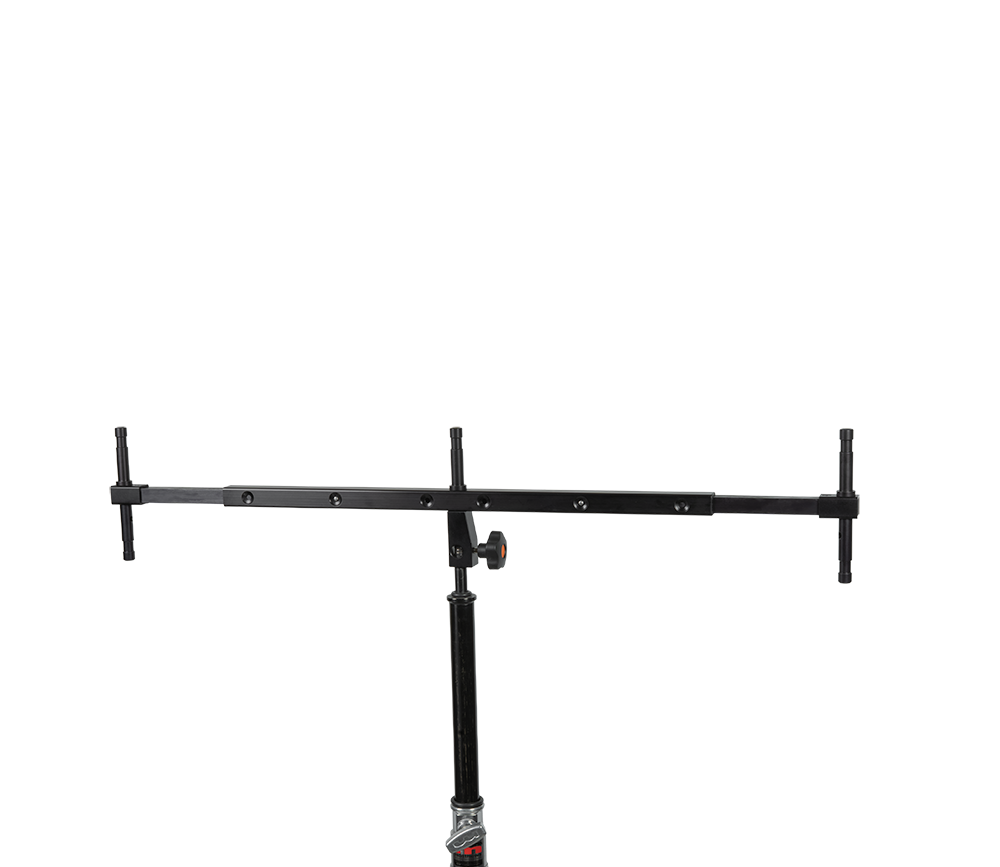

Whaley Telescoping Header on a stand, front view, rail partially extended

Whaley Telescoping Header

USD$285.00

The Whaley Telescoping Header allows users to mount accessories via our Whaley cross rail to a single baby pin anchor point. The center spigot adapter is securely mounted to the cross rail with a 3/8 pin-lock baby pin and dowel pins for a non-twist setup.

The outer baby pins are connected to telescoping sections to help spread apart wireless receivers and devices when in use. The telescoping system has three stages: collapsed, middle and full extension and each side telescopes independently by depressing a spring button pin.

Length:
– Collapsed stage: 28.3″
– Middle stage: 37.9″
– Full extension stage: 47.5″

Baby Pin Spacing (distance from outer baby pin to center baby pin):
– Collapsed stage: 13.59″
– Middle stage: 18.38″
– Full extension stage: 23.18″

Supports up to 4kg / 8.82lbs at full extension (static load rating)
Weight: 1.098kg / 2.42lbs
