MMS09 VESA Monitor Mount to 5/8″ Spigot – Ball-Loc – QR-L/P

(2 customer reviews)

USD$292.50 – $363.75

The MMS09 VESA Monitor Mount to 5/8″ Spigot – Ball-Loc – QR-L/P supports broadcast & production quality monitors up to 60 lb/27kg, designed specifically for mobile cart/truck applications. Chosen by professionals & rental houses to mount VESA standard monitors to 5/8” (16mm) baby pins.

The Ball-Loc hinge design keeps your monitor secure from the static and dynamic forces when moving your DIT cart or rolling stand on set or on location. This innovative design is for heavier loads and long term use, assured by our lifetime warranty.

The QR-L/P VESA mounting plate model combines the capabilities of the LP-Swinger model with the convenience of the Quick Release option. Keep setup and take-down time to a minimum, while making full use of the full monitor display screen by swinging your monitor from the landscape to portrait position.

Purchase the full QR-L/P assembly or order the assembly with only the QR-L/P Receiver Plate if you already have your monitor outfitted with the Quick Release monitor plate.

Mount wireless receivers, transmitters, antennas or other accessories directly to our Monitor Mounts using the 1/4-20, 3/8-16 or M5 non-twist threaded holes. See drop down menu below for further information regarding our non-twist mounting accessories.

Supports up to 60 lb/27kg.

Weight: 0.615kg/1.36lbs

Made in Canada. NAFTA Qualified. CETA Qualified.

For those that prefer Standard VESA, Quick Release or Landscape/Portrait functionality, consider our other MMS09 models.

For those that prefer fine view-angle adjustment, consider our Friction-Loc models.

For those that prefer further articulation and adjustment potential, consider our MMS11-MC Twin-Hinge Ball-Loc models.

Consider mounting accessories via M5 non-twist baby pin or 15mm spud

MMS 5/8 Baby Pin Non-Twist – M5 (link)

The MMS 5/8 Non-Twist Baby Pin can be mounted via the M5 thread found on all of our latest Monitor Mounts. Mounts via 5/32 or 4mm Hex Key. Once mounted, the top of the 5/8 Baby Pin also provides a 3/8 tapped thread for mounting accessories.

MMS 15mm Mounting Spud Non-Twist – M5 (link)

The MMS 15mm Non-Twist Mounting Spud can be mounted via the M5 thread found on all of our latest Monitor Mounts. Mounts via 5/32 or 4mm Hex Key. Once mounted, the top of the 15mm Mounting Spud also provides a 3/8 tapped thread for mounting accessories. Spuds come with captive and friction o-rings to keep accessories in place while adjusting or loosening.

Select either mounting standard to mount accessories with 15mm or 5/8 baby pin standard components. Pair either accessory with our Rudy Arm articulating arm for endless mounting options.

Consider for SmallHD 1303 VESA 100 mounting

SmallHD 1300 Series Monitor Mount SpacersThe SmallHD 1300 Cheese Plate Spacers (link) raise the battery plate on your SmallHD 1300 series monitor to clear the standard VESA 100 mounting pattern.

Clear
Currency
SKU: N/A Categories: , Tags: , , , , , , , , , ,

Rental House Tested & Approved.

Our superior quality single-hinge monitor mounting systems are made from aircraft aluminum. We use only high quality knobs and levers that will last for many years. All mounts are load rated making them a top choice for professionals and rental houses. They are designed to attach to 5/8″ or 16mm male spigots that are common on most c-stands. Our multiple hinge locking systems and mounting options allow you to “build your own” mount, that best fits your individual needs.

Preferred Choice for Digital Imaging Technicians & Mobile Cart Applications

“Upgrade Innovations ball lock monitor mounts are absurdly solid. I’ve tried every mount possible from film business stalwarts to the workplace ergonomics industry. There really is no comparison: the design and build quality of the Upgrade ball lock monitor mounts are fantastic!”

Michael Romano, Digital Imaging Technician, Credits: Reminiscence (Warner Bros), “Palm Springs” (Hulu), “Unbelievable” (Netflix)

Upgrade Innovations
2020-09-25T21:20:20-07:00

Michael Romano, Digital Imaging Technician, Credits: Reminiscence (Warner Bros), “Palm Springs” (Hulu), “Unbelievable” (Netflix)

“Upgrade Innovations ball lock monitor mounts are absurdly solid. I’ve tried every mount possible from film business stalwarts to the workplace ergonomics industry. There really is no comparison: the design and build quality of the Upgrade ball lock monitor mounts are fantastic!”
"Upgrade Innovations mounts are the industry standard for robust monitor mounts that can last punishing days on set. The Ball-Loc system created by Rudy has no equal if you ask me."

Chris Bolton, Digital Imaging Technician, Credits: Jurassic World, Deadpool, Sonic the Hedghog

Upgrade Innovations
2020-09-25T21:23:30-07:00

Chris Bolton, Digital Imaging Technician, Credits: Jurassic World, Deadpool, Sonic the Hedghog

"Upgrade Innovations mounts are the industry standard for robust monitor mounts that can last punishing days on set. The Ball-Loc system created by Rudy has no equal if you ask me."
“My monitors are the most critical parts to my DIT cart and their constant safety and care are a paramount concern of mine. I need to pack and unpack my monitors for every job, making quick release mounts a must-have for consistent and safe builds. Upgrade Innovations’ Ball-Loc mounts just do not move, period. That kind of strength and ease of use means I don’t have to stress about monitor safety, freeing me to focus on the creative work I love doing.”

Shannon Cook, Digital Imaging Technician, Credits: The Morning Show, Insecure, The Leftovers

Upgrade Innovations
2020-09-28T20:59:55-07:00

Shannon Cook, Digital Imaging Technician, Credits: The Morning Show, Insecure, The Leftovers

“My monitors are the most critical parts to my DIT cart and their constant safety and care are a paramount concern of mine. I need to pack and unpack my monitors for every job, making quick release mounts a must-have for consistent and safe builds. Upgrade Innovations’ Ball-Loc mounts just do not move, period. That kind of strength and ease of use means I don’t have to stress about monitor safety, freeing me to focus on the creative work I love doing.”
"The Upgrade Innovations Quick Release Ball-loc monitor mount is everything I need in a monitor mount. Strong, adjustable, rigid, light and the quick release plate allows me to fit two Sony PVM-A250 monitors in the same size case that I previously kept only one."

Ryan McGregor, Digital Imaging Technician, Credits: Fargo the Series, Lost in Space, Legion

Upgrade Innovations
2020-09-28T21:09:29-07:00

Ryan McGregor, Digital Imaging Technician, Credits: Fargo the Series, Lost in Space, Legion

"The Upgrade Innovations Quick Release Ball-loc monitor mount is everything I need in a monitor mount. Strong, adjustable, rigid, light and the quick release plate allows me to fit two Sony PVM-A250 monitors in the same size case that I previously kept only one."
“I once had my cart dip into a rabbit hole and fall over. My monitors did not budge thanks to these mounts. As a commercial DIT I need to be ready for anything. These mounts give me more options on set and make location moves a breeze."

Jason Johnson, Digital Imaging Technician, Credits: Commercials (Apple, Google, Nike, VISA, Coke)

Upgrade Innovations
2020-09-28T21:11:30-07:00

Jason Johnson, Digital Imaging Technician, Credits: Commercials (Apple, Google, Nike, VISA, Coke)

“I once had my cart dip into a rabbit hole and fall over. My monitors did not budge thanks to these mounts. As a commercial DIT I need to be ready for anything. These mounts give me more options on set and make location moves a breeze."
“The ball-loc monitor mounts are a must have in my opinion. I paired them with the quick release plates - I never worry about my monitors loosening and tilting down because of friction. From keeping my 25" monitors mounted on my cart to process trailer days, the ball-loc mounts never let me down making sure my monitors are secured well”

Qais Karadsheh, Digital Imaging Technician, Credits: Gemini Man - 2nd Unit, Hillbilly Elegy - Addl Photography, The Tomorrow War - 2nd Unit

Upgrade Innovations
2020-09-30T00:11:15-07:00

Qais Karadsheh, Digital Imaging Technician, Credits: Gemini Man - 2nd Unit, Hillbilly Elegy - Addl Photography, The Tomorrow War - 2nd Unit

“The ball-loc monitor mounts are a must have in my opinion. I paired them with the quick release plates - I never worry about my monitors loosening and tilting down because of friction. From keeping my 25" monitors mounted on my cart to process trailer days, the ball-loc mounts never let me down making sure my monitors are secured well”
"Upgrade's Ball-Loc mounts are the only VESA-to-pin product I trust. Get the best, forget the rest!"

Ben Whaley, Digital Imaging Technician, Credits: "The Handmaid's Tale" (Hulu)

Upgrade Innovations
2020-09-30T22:04:19-07:00

Ben Whaley, Digital Imaging Technician, Credits: "The Handmaid's Tale" (Hulu)

"Upgrade's Ball-Loc mounts are the only VESA-to-pin product I trust. Get the best, forget the rest!"
"I've used the Upgrade Innovations Ball-Loc Monitor Mounts on all 4 of my Inovativ Carts for years now. They can always be counted on in the most demanding situations to stay locked in place never moving, keeping my monitors safe and secure. I especially like using them with the quick release plates allowing me to quickly mount or unmount monitors for travelling."

Elmer Ventura, Digital Imaging Technician, Credits: "Riverdale”, "Chilling Adventures of Sabrina", "The Romeo Section"

Upgrade Innovations
2020-10-05T22:56:46-07:00

Elmer Ventura, Digital Imaging Technician, Credits: "Riverdale”, "Chilling Adventures of Sabrina", "The Romeo Section"

"I've used the Upgrade Innovations Ball-Loc Monitor Mounts on all 4 of my Inovativ Carts for years now. They can always be counted on in the most demanding situations to stay locked in place never moving, keeping my monitors safe and secure. I especially like using them with the quick release plates allowing me to quickly mount or unmount monitors for travelling."
0
0
Upgrade Innovations

QR-L/P – Quick Release – Landscape/Portrait VESA Monitor Plate
Combine the capabilities of the LP-Swinger model with the convenience of the Quick Release option. Keep setup and take-down time to a minimum, while making full use of the full monitor display screen by swinging your monitor from the landscape to portrait position.

Ball-Loc System
Our rosette style ball-lock is a positive locking system that comes with heat treated ball bearings embedded in the locking surface, with a lock index of 15 degrees. Models coming with this system will have a superior hold for heavier loads and long term use, on mobile carts, follow vehicles or trucks. This system is best for when static and dynamic forces are at play.

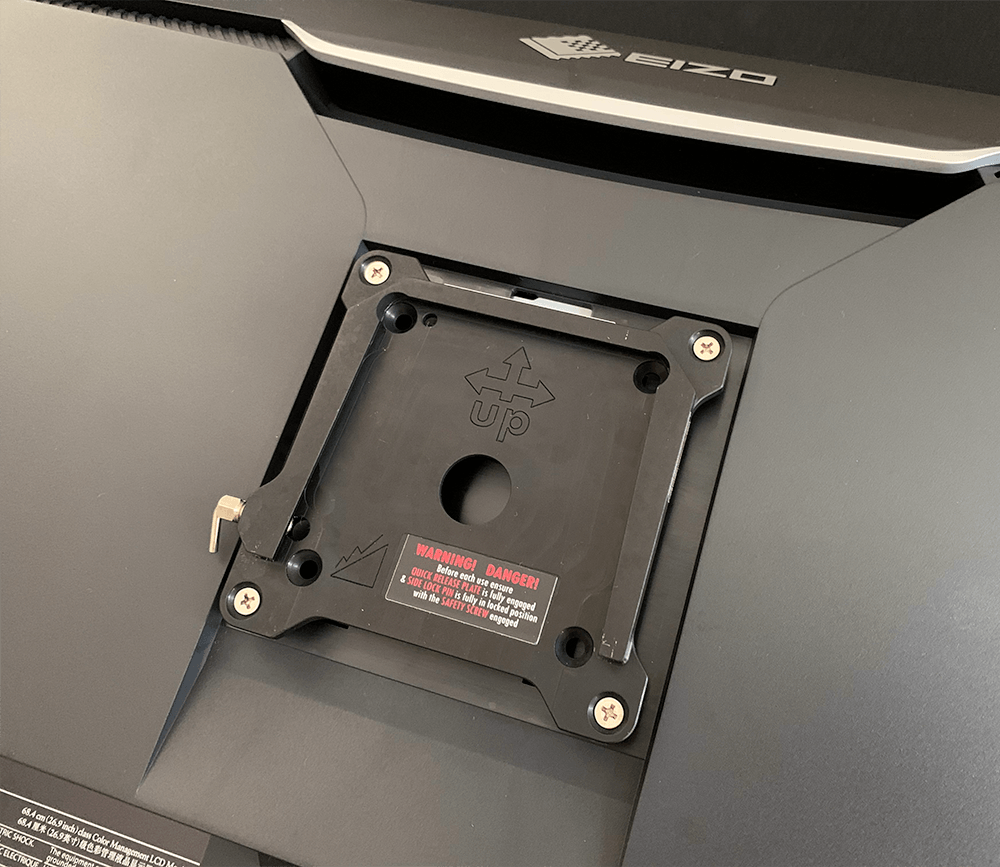

Quick Release Monitor Plate
The slim VESA Quick Release Monitor Plate fits to the back of your VESA 75/100mm monitor taking up little space, only adding 10mm/0.39″. This allows you to use much smaller storage/transport cases while keeping setup and take-down time to a minimum.

QR Locking Latch and Safety Thumbscrew
Secure monitor with a locking latch that has a “hold open” option, as well as a safety thumbscrew screw.

Recessed VESA Patterns
Spacers and longer M4 mounting screws are provided because mounting surfaces and the final mounting method may vary, such as recessed mounting patterns.

Locking Knob
Quickly loosen L/P knob to swing monitor from landscape to portrait mode and tighten to hold in place.

Adjustable Friction
Built in adjustable friction that can be fine tuned via a set screw with a 3mm hex key.

Supports broadcast & production quality monitors up to 60 lb/27kg.

Our innovative ball-lock hinge system is designed to secure and hold monitors during cart moves. A perfect pairing with our Whaley Rail monitor mounting frame system.

“The Upgrade Innovations Quick Release Ball-loc monitor mount is everything I need in a monitor mount. Strong, adjustable, rigid, light and the quick release plate allows me to fit two Sony PVM-A250 monitors in the same size case that I previously kept only one.”

Ryan McGregor

Digital Imaging Technician, Credits: Fargo the Series, Lost in Space, Legion

Threaded Holes
Mount accessories directly to our Monitor Mounts using the 1/4, 3/8 or M5 non-twist threaded hole. The M5 thread is for our new hard-mount 5/8 Baby Pin or 15mm Spud. Choose either mounting standard to mount accessories.

Different models, different functionality
The MMS09 has multiple models to fit your needs. Choose between our four VESA Monitor Plates to provide Standard, Landscape/Portrait and/or Quick Release functionality.

Upgrade Friendly
Our monitor mounts are built to last, so we designed a system that allows for you upgrade your mounts in case your needs change. No need for Quick Release at the moment? Work off your current budget and upgrade your mount with a different VESA Monitor Plate at a future date.

Accessories

Rudy Arm – 15mm Mounting System
Industry tough articulating arm that is built for universal use. Mount multiple components to a single anchor point by making use of the truly transforming system.

Rudy Arm – 15mm Mounting System
Swing monitor from Landscape to Portrait independently from accessories mounted to the spigot assembly.

SmallHD 1300 Series Monitors
The SmallHD 1300 Cheese Plate Spacers raise the battery plate on your SmallHD 1300 series monitor to clear the standard VESA 100 mounting pattern.

VESA Adapter Set – 300x200mm & 300x300mm
The adapter set allows you take our VESA plates and expand it to either 300mm x 200 mm or 300mm x 300mm.

VESA Adapter Set – 200x100mm & 200x200mm
The adapter set allows you take our VESA plates and expand it to either 200mm x 100 mm or 200mm x 200mm.

VESA Adapter Set – 400x200mm & 400x300mm & 400x400mm
The adapter set allows you take our VESA plates and expand it to either 400mm x 200 mm, 400mm x 300mm or 400mm x 400mm.

Safety Cable Ready
The machined hole at the VESA mounting plate adapter allows you to feed a safety cable through for safe overhead mounting. Use in any application where safety is a concern.

Quick Release Assembly Instructions

FDMI VESA Mounting Compliance
Spacers and longer M4 mounting screws are provided because mounting surfaces and the final mounting method may vary. Prior to install, check mounting interface, mounting hole pattern and screw length to comply with FDMI Standards. Failure to do so may result in damage to monitor or improper mounting to support applied loads.

Components Included with QR Monitor Plate
Flat Head Phillips – various lengths (M4 x 10mm x4, M4 x 20mm x 4), Aluminum Spacers x4

Supports up to 60 lb/27kg.

Weight: 0.615kg/1.36lbs

Solidly built with premium 6061 aircraft aluminum, Mil-Spec anodizing & stainless steel hardware.

Made in Canada. NAFTA Qualified. CETA Qualified.
