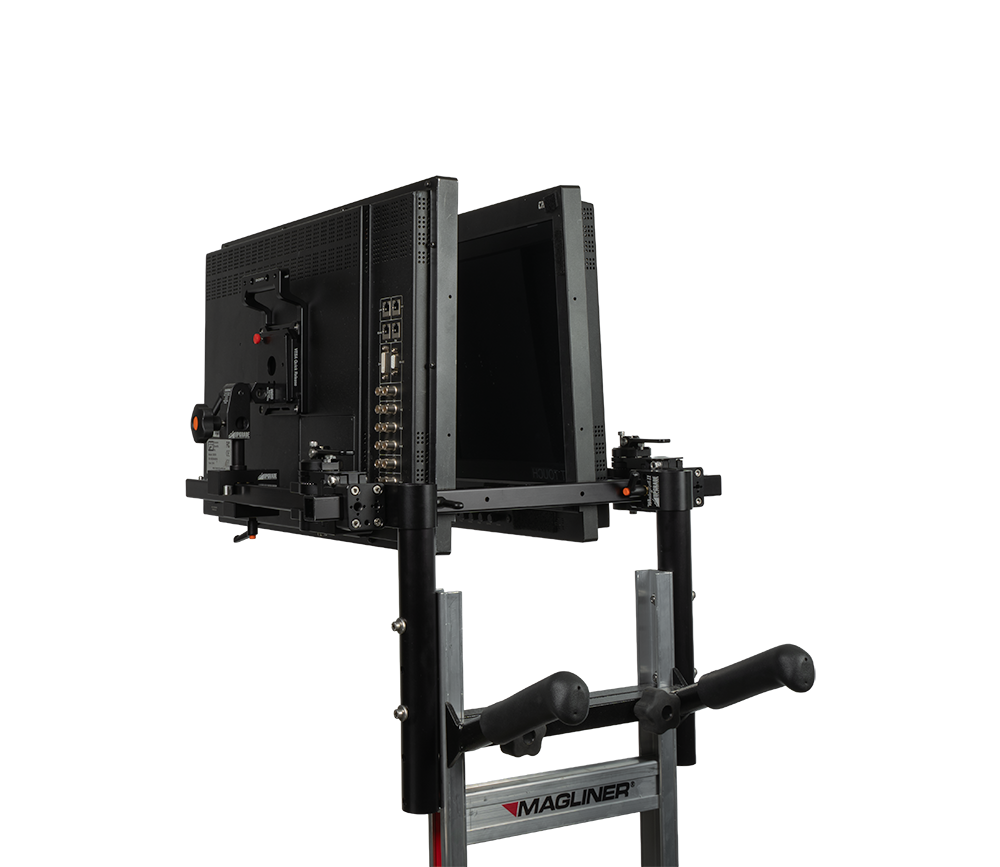

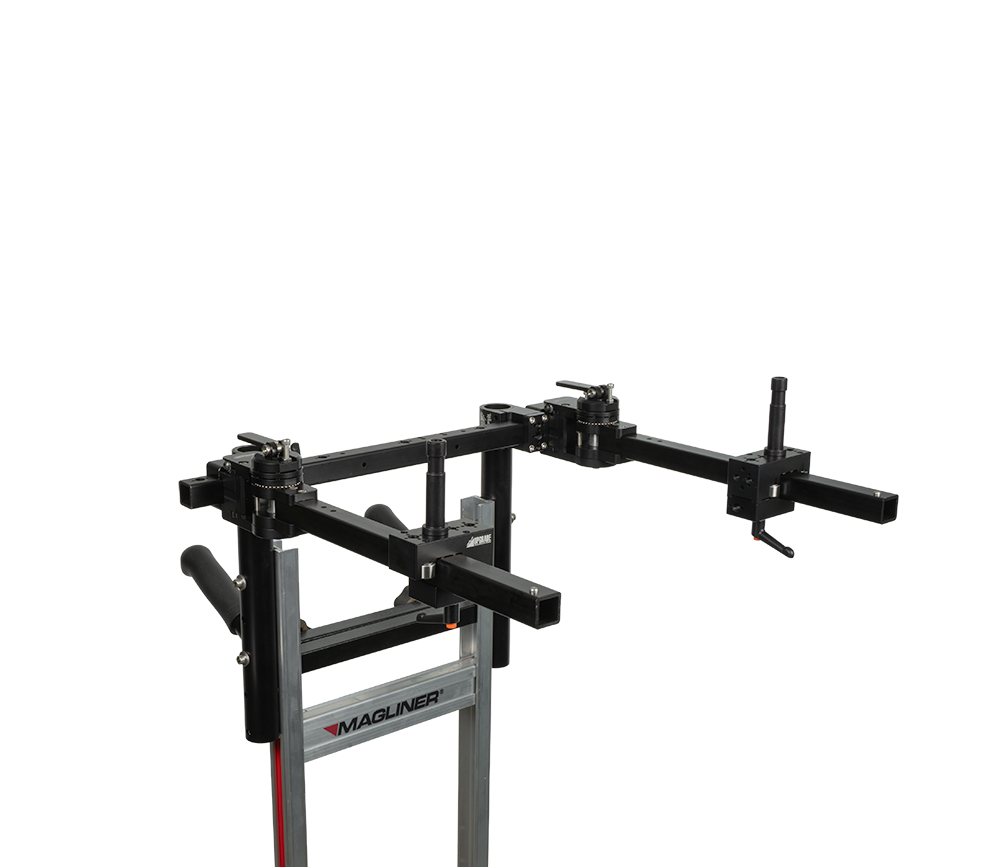

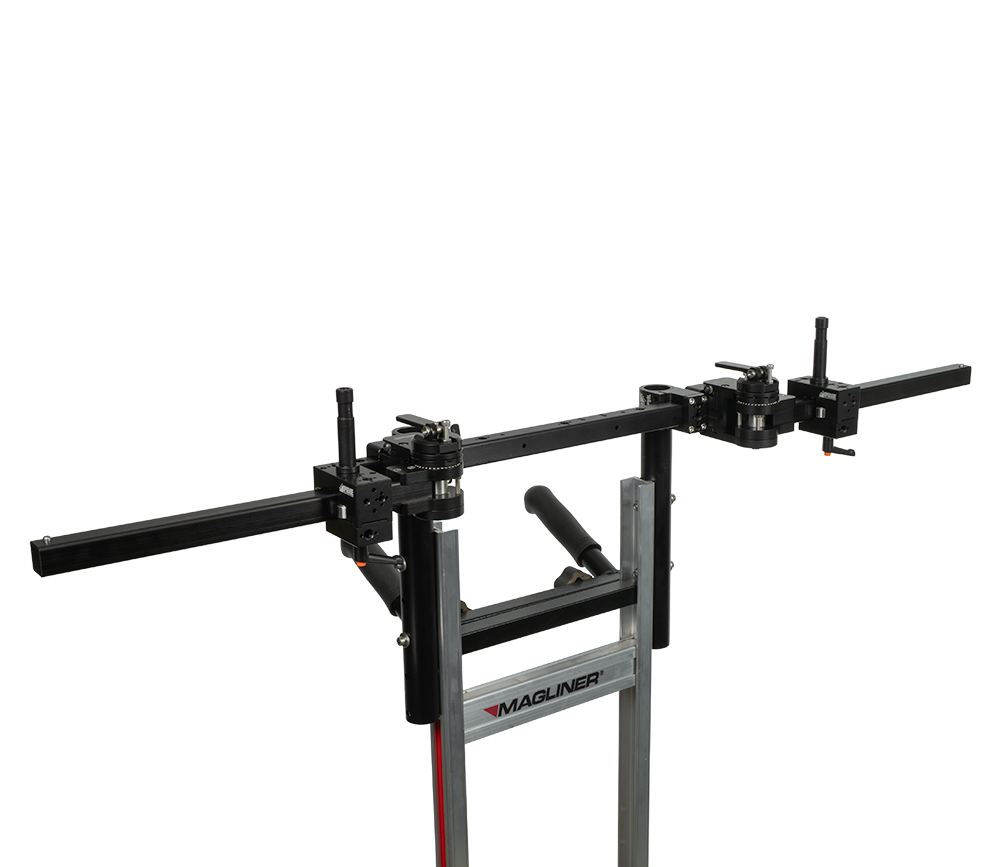

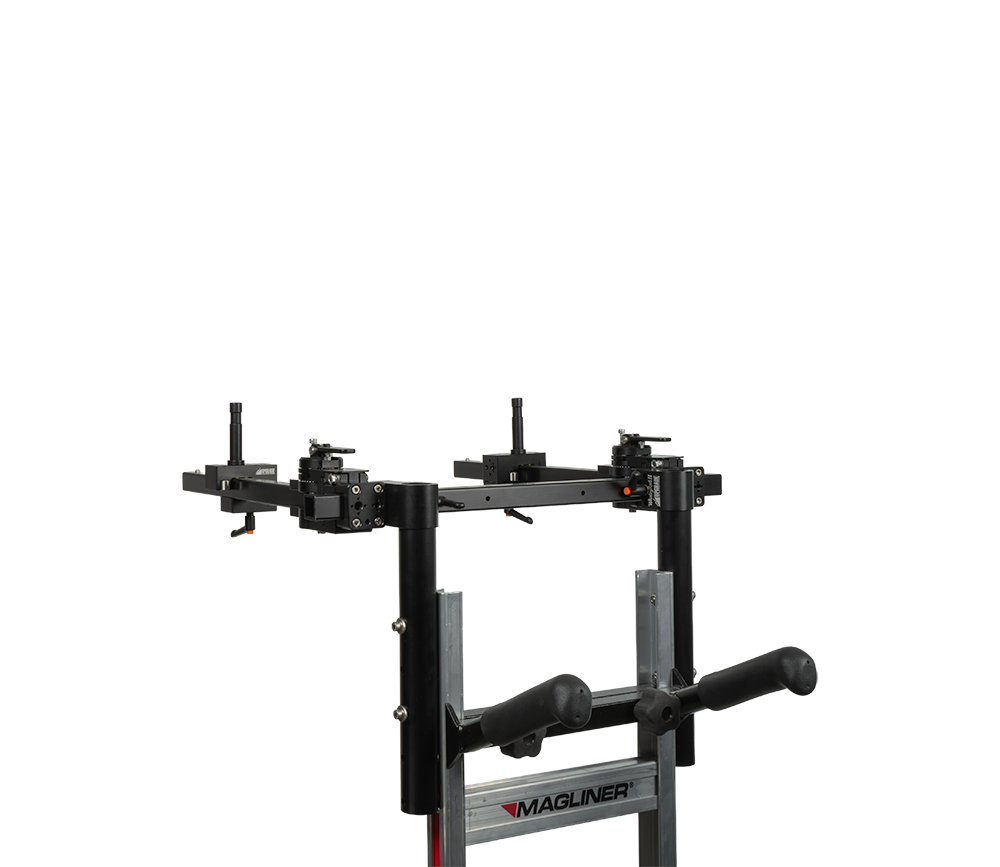

Switch your Vertical Magliner monitors from view mode to packed mode quickly, without sacrificing security. The Whaley Rail Swing Arm Monitor Frame mounts two production monitors on your Magliner cart — slide them into position with the Glide Clamp, then fold them in or out with the Swing Arm’s ball-lock hinge, so your cart is ready to move fast.

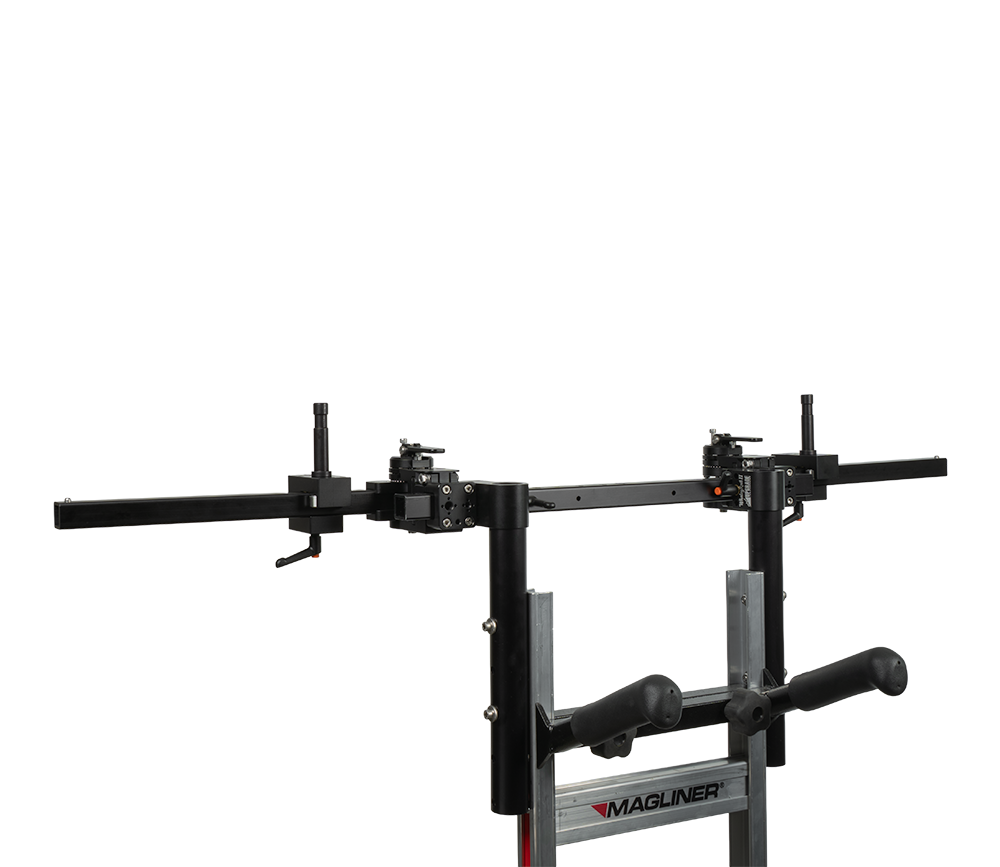

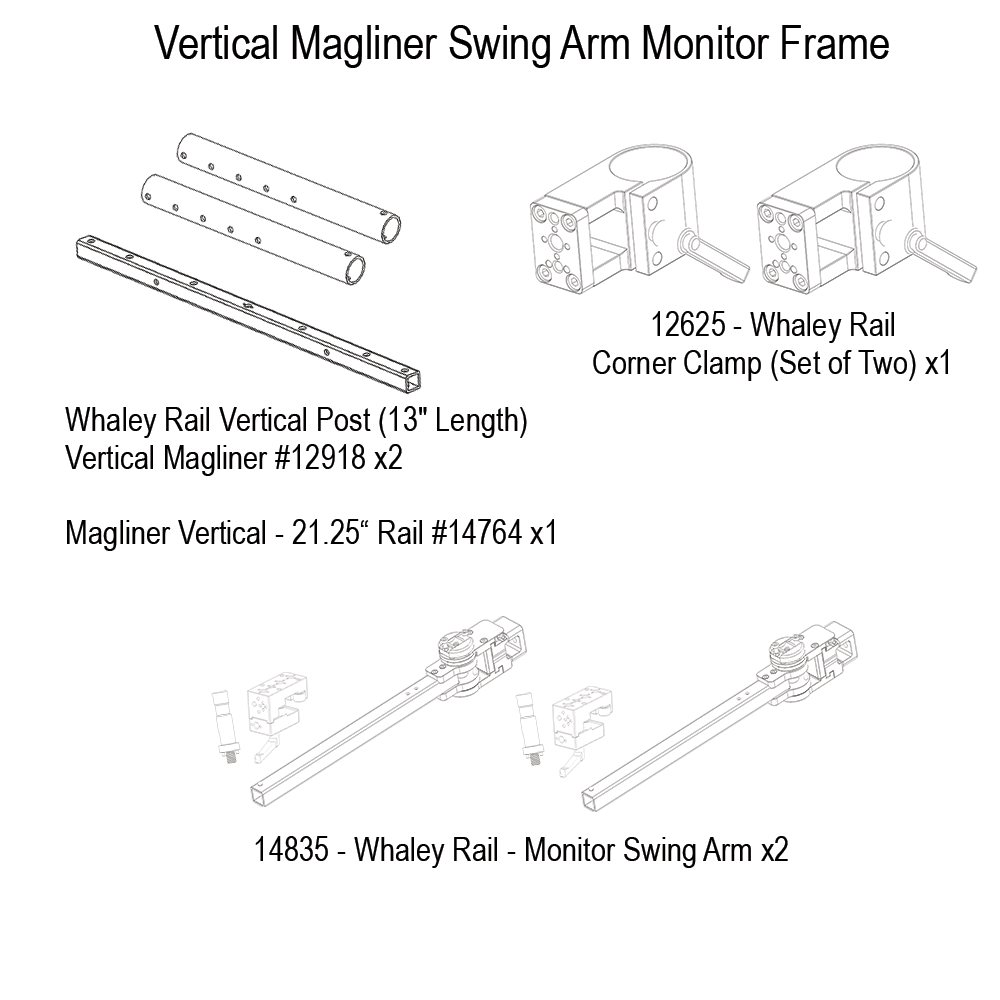

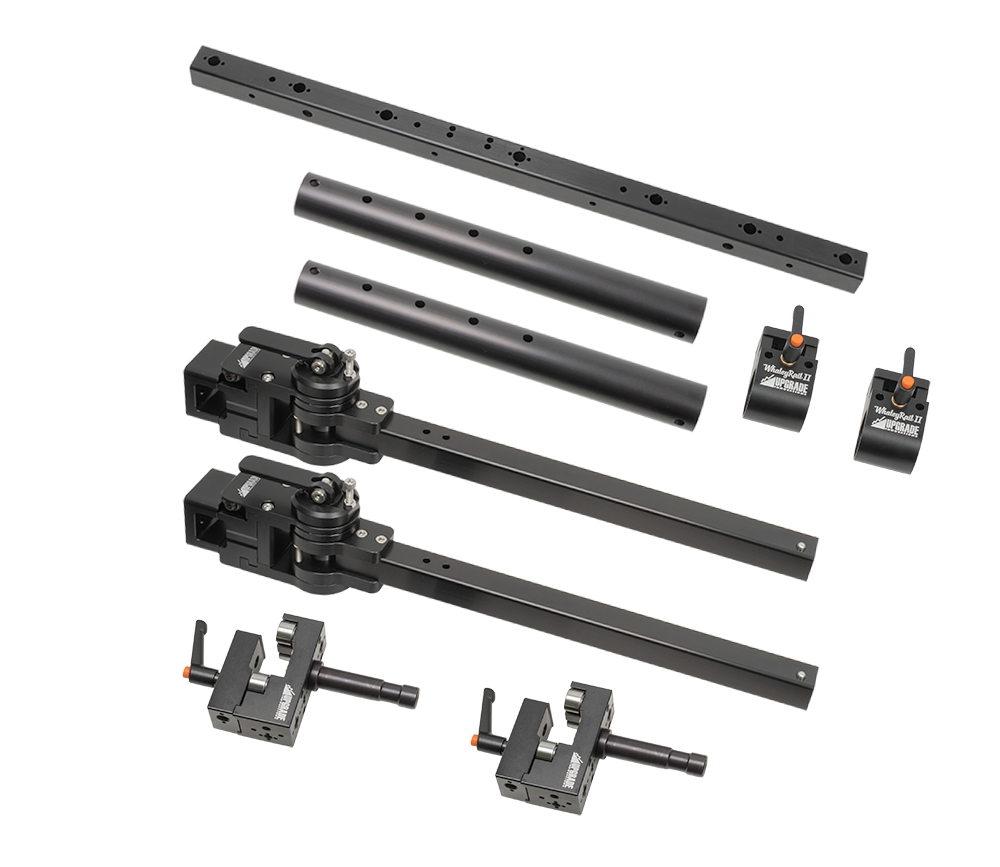

The frame attaches via 13″ vertical posts (1.5″ OD) that integrate with the Vertical Magliner without any modifications to the cart frame — the posts mount using a set of M6 bolts and nuts. Whaley Rail Corner Clamps let you position the 21.25″ horizontal rail anywhere along the posts, and each Swing Arm attaches independently to the rail so you can line up monitors of different sizes exactly where you need them.

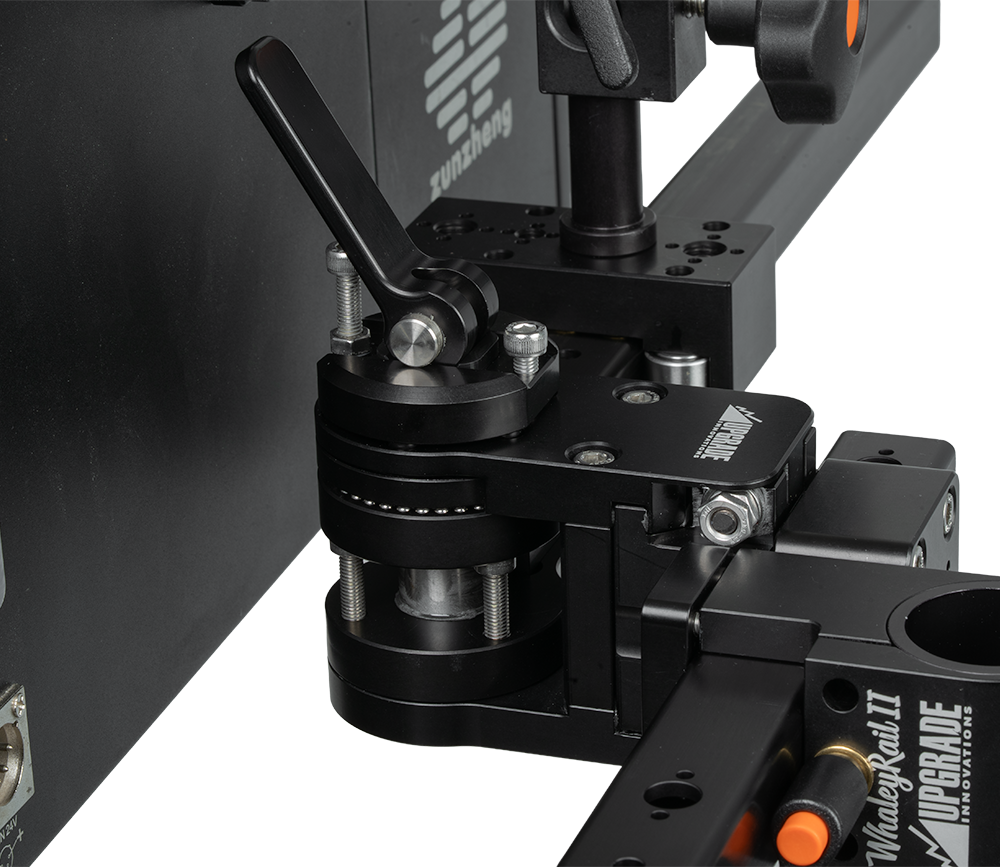

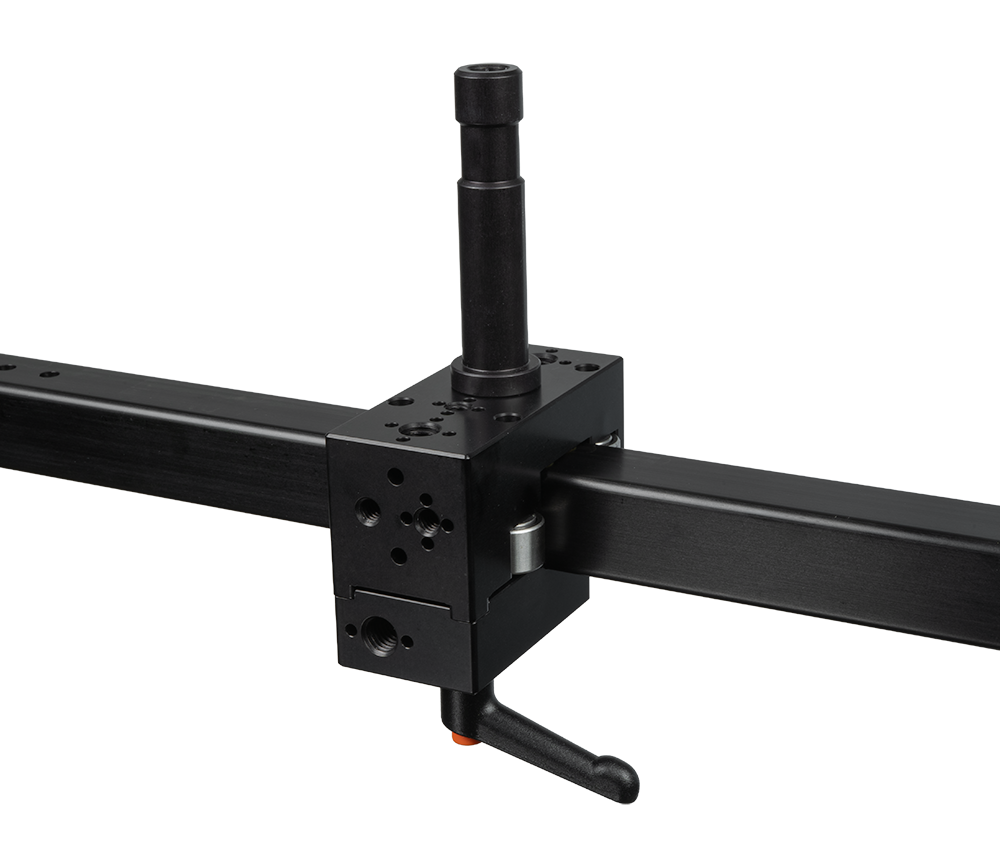

Every Swing Arm uses our ball-locking hinge system: unclamp it and the arm floats freely to fold monitors inward for cart moves; clamp it and the arm locks solid, with 10-degree intervals for fine positioning. The Whaley Rail Glide Clamp adds a second axis of adjustment, sliding smoothly along the arm on rolling bearings so monitors can be repositioned in view mode and cleared of obstructions when folding into packed mode.

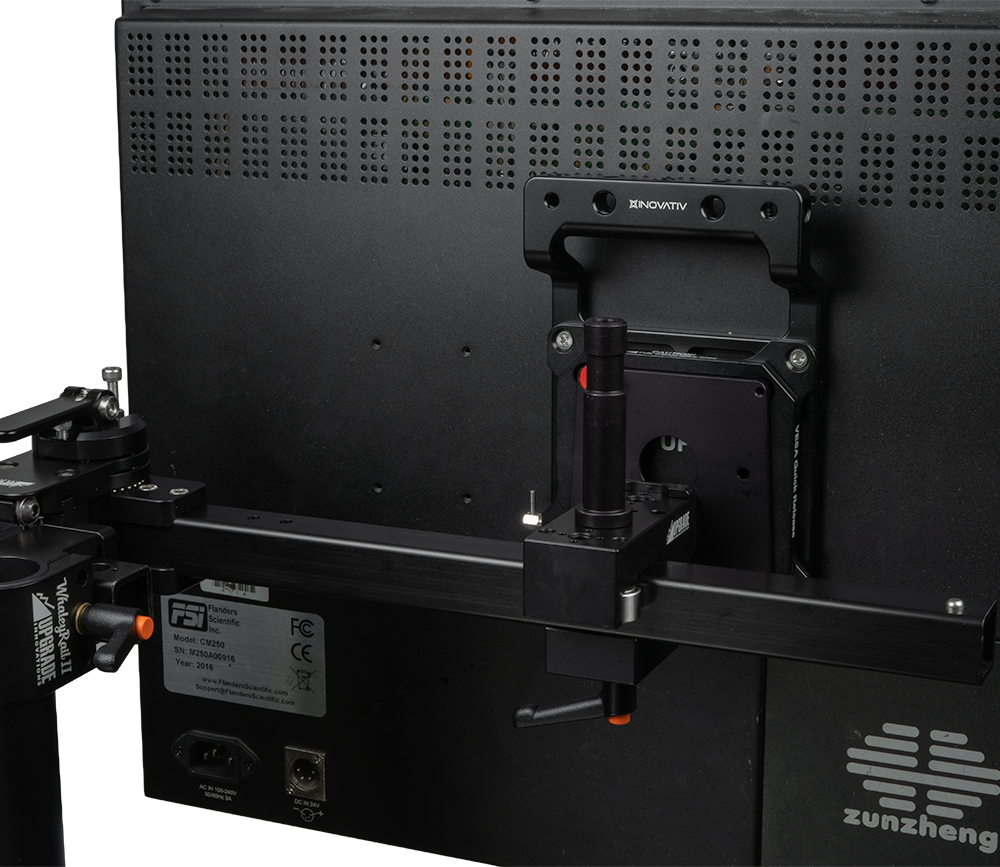

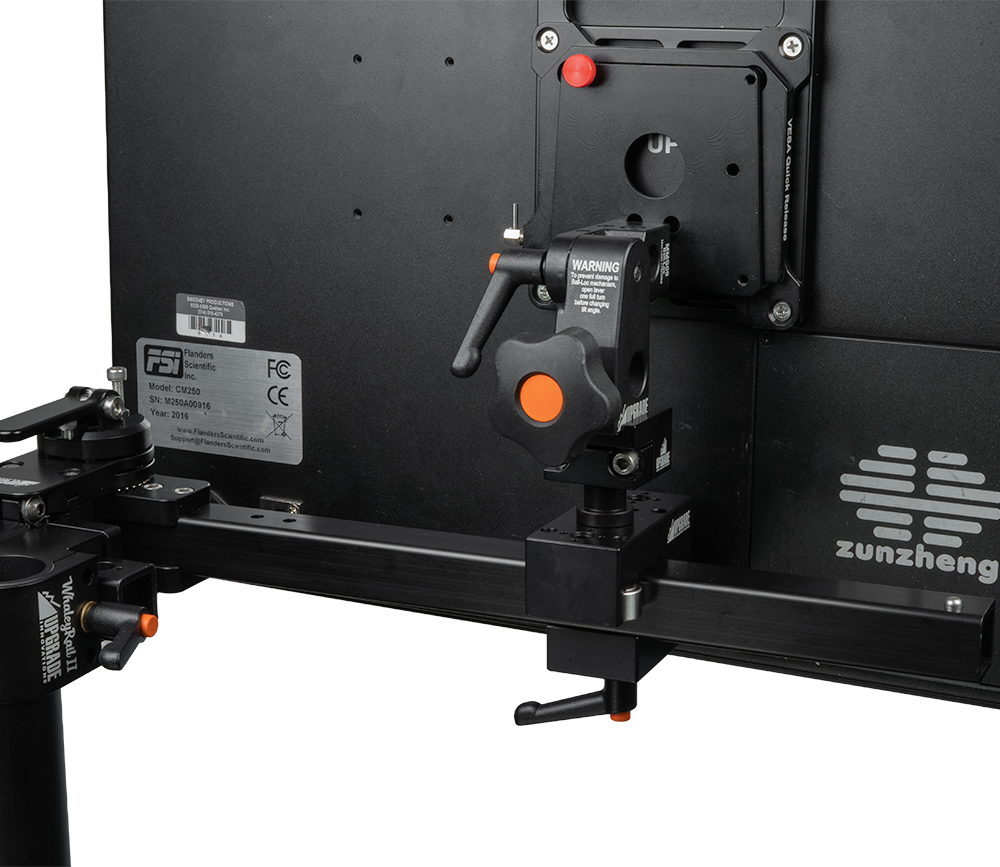

Mount your monitors using the included 3″ Whaley 3/8 Pin-Loc Baby Pin along with our Ball-Lock Monitor Spigot Mounts and Quick Release VESA Plates, a positive-lock system built to hold steady under both static and moving loads. Pair it with the MMS09 VESA Mount, MMS11-MC VESA Mount, or Quick Release VESA Plate depending on your setup.

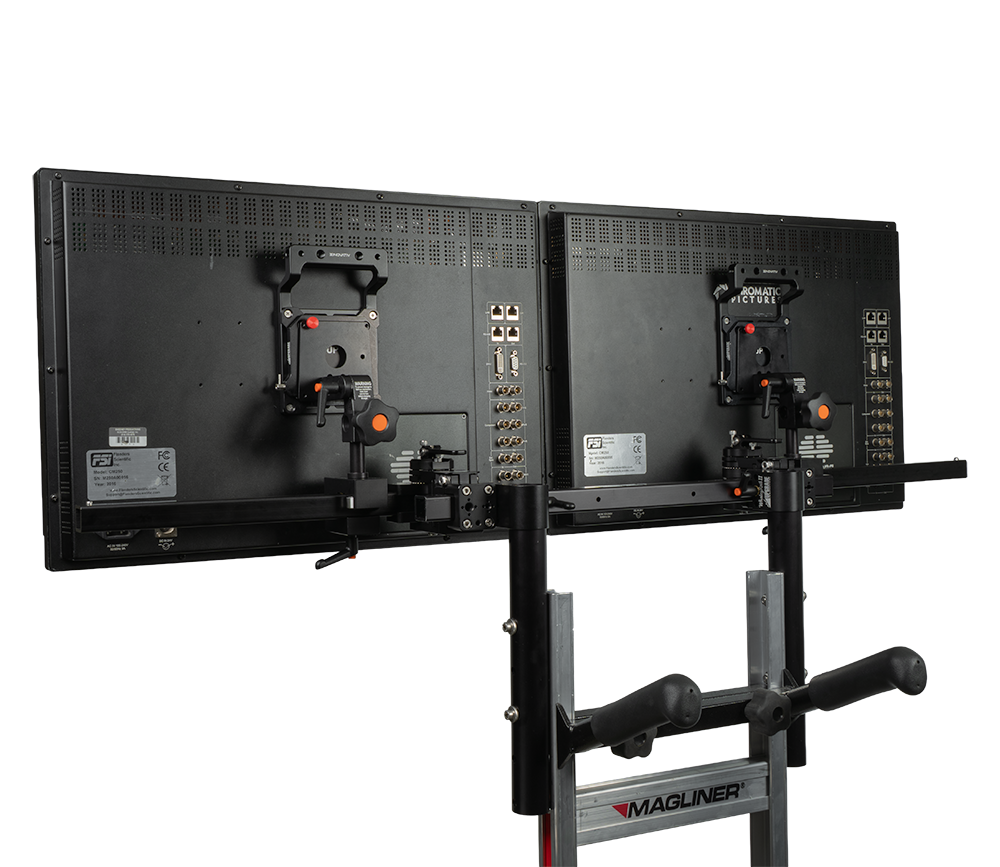

• Mount two monitors on your Vertical Magliner cart

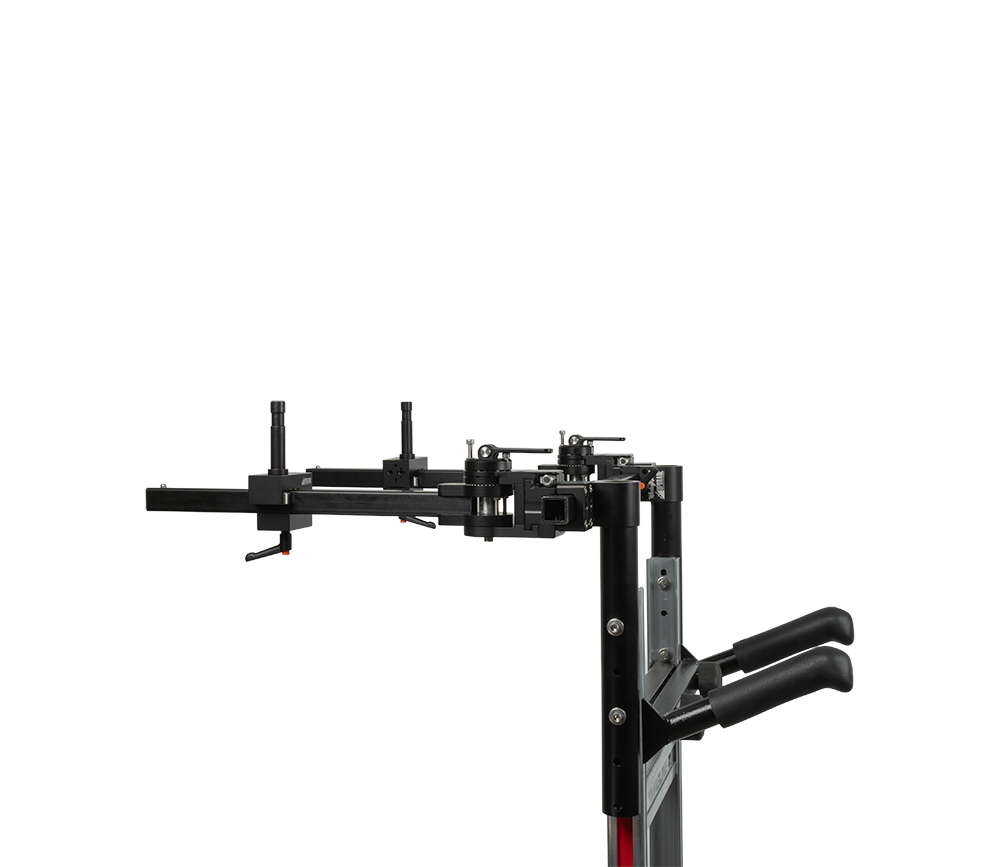

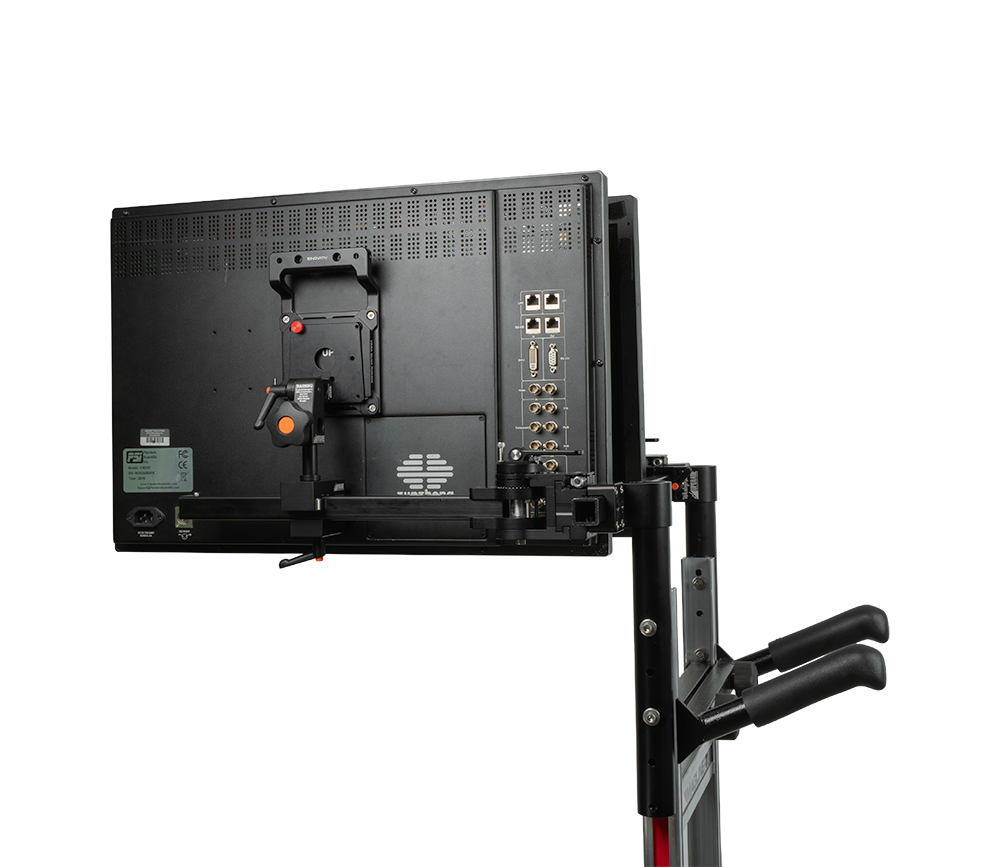

• Reposition and fold monitors between view and pack mode using the Glide Clamp and Swing Arm hinge
• Ball-lock system keeps monitors secure during transport

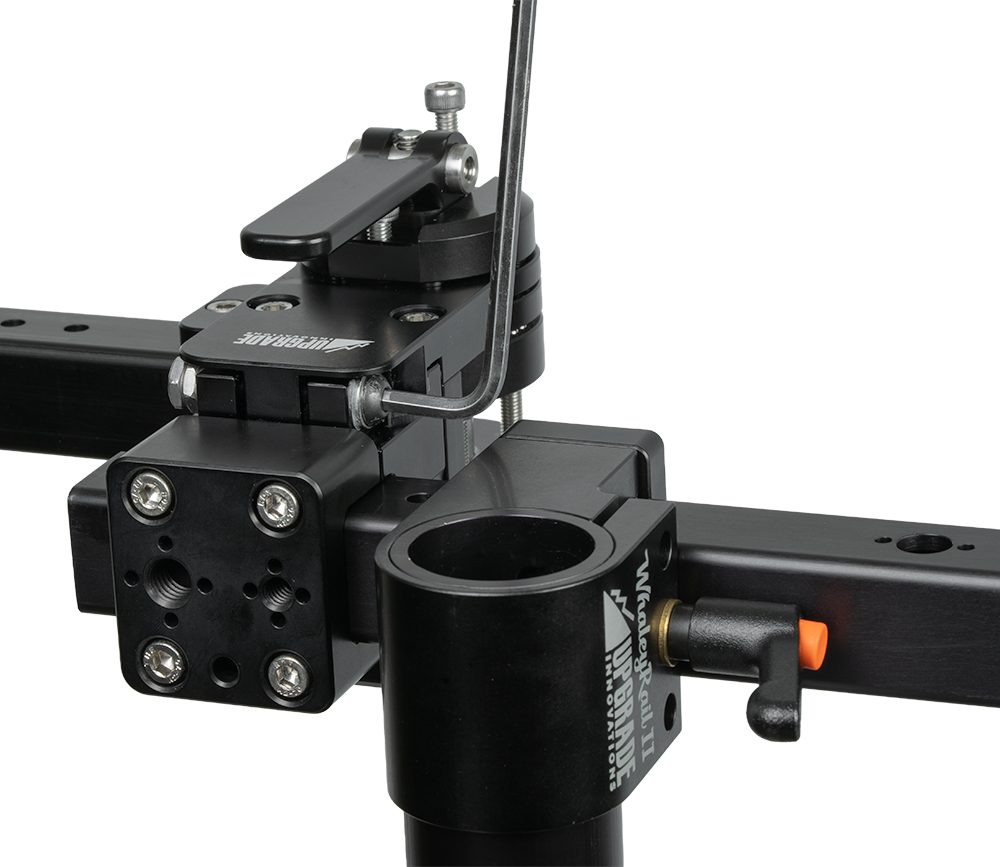

• Built-in leveling adjustment keeps monitors aligned
• Installs directly onto the Magliner frame with M6 hardware — no cart modifications required

Weight: 4.81kg / 10.60lbs
Swing Arm Weight Load Rating: 12kg / 26.45lbs
