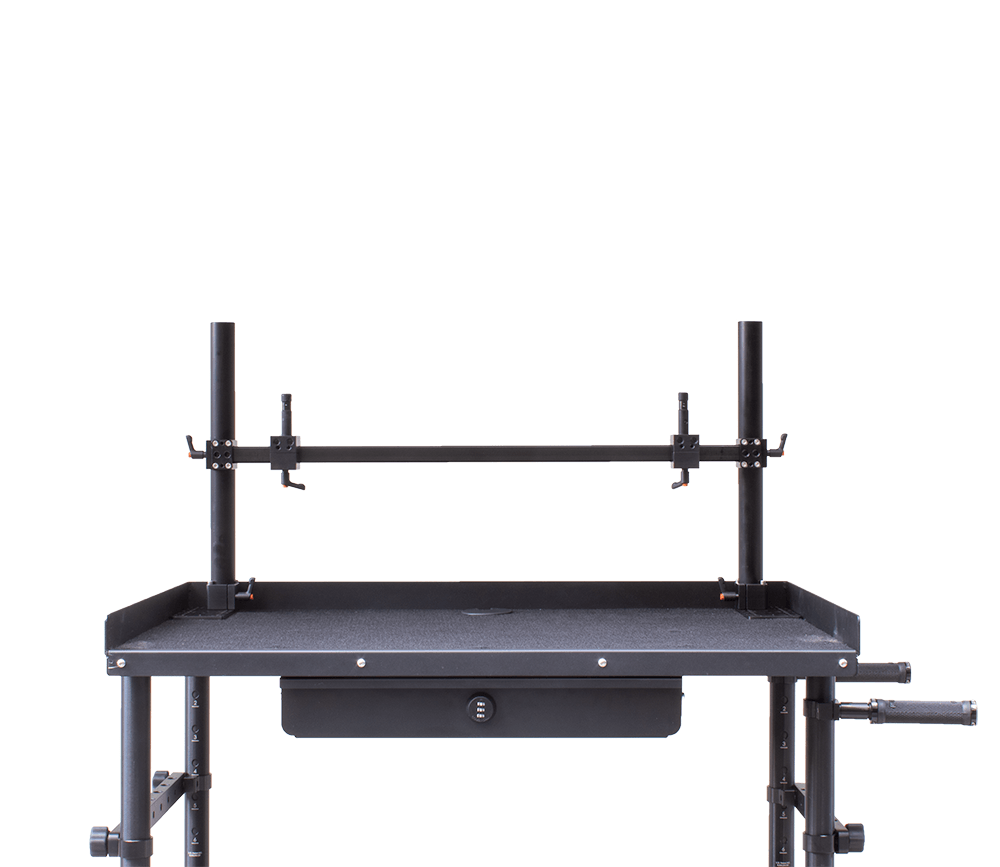

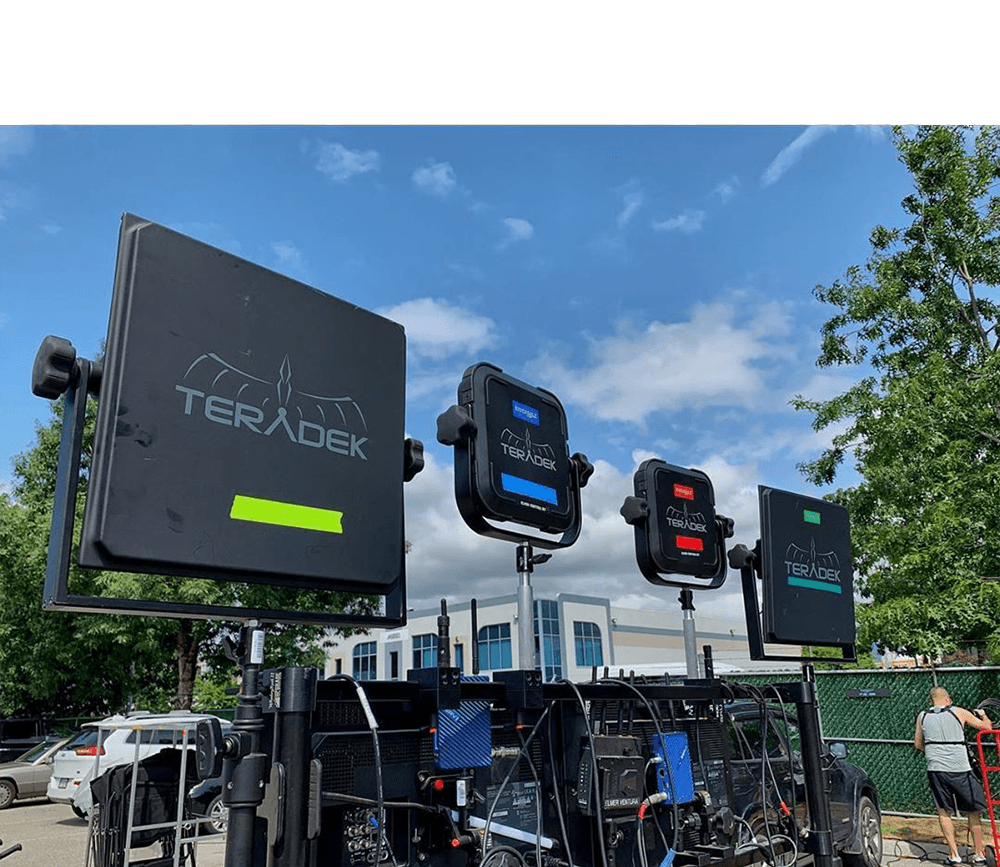

Whaley Rail II

USD$713.23

The Whaley Rail II is a collaborative design between Ben Whaley (667 DIT) & Upgrade Innovations. This system provides DIT’s with a solid lightweight mounting frame to hold multiple production monitors and other accessories.

Designed to integrate with Inovativ Echo without needing holes drilled through the cart deck, the Whaley Rail II can also be mounted to other Inovativ carts, including Scout, Voyager & Apollo models. The Whaley Rail can be built to practically any cart deck, so other camera carts such as Adicam, Magliner & Yaegar among others can be upgraded with this professional monitor mounting frame.

The modular mounting rails eliminate unwanted motion & provide strength and stability, while still allowing for horizontal and vertical adjustments. You can customize your Whaley Rail II to be either a single or double rail system, offering various setup options for monitors and accessories. Both the single rail and double rail systems include two rail clamps to 5/8 baby pin in the base setup. See the Additional Information tab for further details on the available systems.

For a tight location move or for transport, quick release the Whaley Rail II frame from the deck via tool-less levers.

Control height and various frame positions to maximize and respect the length and depth of your cart build. This modular design allows for various options including the Packed and Studio versions and provides build flexibility.

The build flexibility allows for the Whaley Rail components to be easily moved between multiple cart sizes so you adapt to your project scope. With a few extra components, swap your rail frame to your smaller cart or larger cart by making use of a different length cross rail. Contact us to discuss this type of modular build!

The Packed and Studio versions have established rail lengths and vertical post heights based on cart model length. Contact us for custom lengths or to mount the Whaley Rail II to a cart not listed.

The Whaley Rail II system is designed to integrate with our popular Ball-Lock Monitor Mounts and Quick Release VESA Plates. The Ball-Lock system is a positive-lock system for rock solid monitor support when static and dynamic forces are at play. Check out the MMS09 VESA Mount, MMS11-MC VESA Mount and the Quick Release VESA Plate.



Build your workstation the way you’ve always wanted.

Contact us for details!



Consider adding our Mobile/Cart VESA Spigot Ball-Lock Monitor Mounts

Upgrade Innovations VESA Spigot Monitor Mounts

Single Hinge MMS09 VESA Monitor Mount to 5/8″ Spigot – Ball-Loc

The MMS09 Ball-Loc VESA Monitor Mount supports broadcast quality monitors up to 60 lb/27kg, designed specifically for mobile cart/truck applications.

Twin Hinge MMS11-MC VESA Monitor Mount to 5/8″ Spigot – Twin Ball-Loc

The MMS11-MC Twin Ball-Loc VESA Monitor Mount supports broadcast quality monitors up to 55 lb/25kg, designed specifically for mobile cart/truck applications. The two-point adjustment design, allows for unlimited viewing positions, making it a preferred mounting option.

VESA Standard Monitor Plate Options

Standard Option – Our Standard mounting plate model comes with our VESA plate thumbscrews with our industry favorite captive design.

Landscape/Portrait Option (LP Swinger) –  Quickly swing your monitor from the landscape to portrait position or level the monitor when on an uneven surface. This mounting option comes with built in adjustable friction and a locking knob to hold the monitor in place.

Quick Release Option (QR) – The slim quick release plate mounts to the back of your monitor taking up little space. This allows you to use much smaller storage/transport cases while keeping setup and take-down time to a minimum. The quick release option is great for camera-digital carts and mobile trucks. It comes with a locking latch that has a “hold open” option as well as a safety screw. This solid quick release mounting option will pay for itself in no time, especially if time and space is an issue.

Quick Release + Landscape/Portrait Option (QR+LP Swinger) – Our latest mounting plate model combines the capabilities of the LP-Swinger model with the convenience of the Quick Release option. Keep setup and take-down time to a minimum, while making full use of the full monitor display screen by swinging your monitor from the landscape to portrait position. This mounting option comes with built in adjustable friction and a locking knob to hold the monitor in place.

Consider adding our Rudy Arm - 15mm Mounting System

Rudy Arm

Rudy Arm

An industry tough articulating arm that is built for universal use. The unique combination of our custom pivot clamps, universal mounting studs and o-ring design rods makes the Rudy Arm system the new industry favourite for strength and versatility. The Rudy Arm is completely customizable to meet the needs of the individual and has endless applications .

Clear
Currency

Designed and Built for Professional DIT’s

Inovativ Echo

Designed to Integrate with Inovativ Echo Carts
Makes use of existing holes through the deck and incorporates the machined post receivers.

Whaley Rail II Packed
Designed to pack and fit inside the Inovativ Echo cart.

Whaley Rail II Studio
Designed for DIT’s to make full use of cart width and monitor frame.

Echo Cheese Plate Mounting
Replace nut & bolt and thread our cheese plate on the top deck. No need to drill holes.

Whaley Rail II Packed
Ideal for commercial DITs, Digital Techs, or for those that pack up cart often.

Whaley Rail II Studio
Ideal for Studio DITs needing to mount two to four production monitors + various other accessories.

Inovativ Apollo

Inovativ Apollo Mounting
Mount the Whaley Rail directly into the corner deck clamps on the Apollo cart. No deck cheese plate or deck post clamps required.

Inovativ Apollo Whaley Rail
Designed for DIT’s to make full use of cart width and monitor frame.

Apollo Vertical Post Adapter
Adapts our Whaley Rail posts to the Apollo corner deck post clamp for quick frame setup/take-down.

Inovativ Apollo Whaley Rail
Ideal for Studio DITs needing to mount two to four production monitors + various other accessories.

Inovativ Scout & Voyager

Inovativ Voyager Mounting
Through holes need to be transferred and drilled through top deck to mount cheese plate with 1/4-20 screws.

Inovativ Voyager Mounting
Cheese plate is mounted with button head screws, for low profile when cart is packed.

Inovativ Voyager
Ideal for commercial DITs, Digital Techs, or for those that pack up cart often.

Inovativ Scout Mounting
Mount cheese plates on top deck, similar to Voyager.

Inovativ Voyager Mounting
Cheese plates on top deck are spaced off side wall to avoid protruding leg post receivers and still allow access to leg post release spring pins.

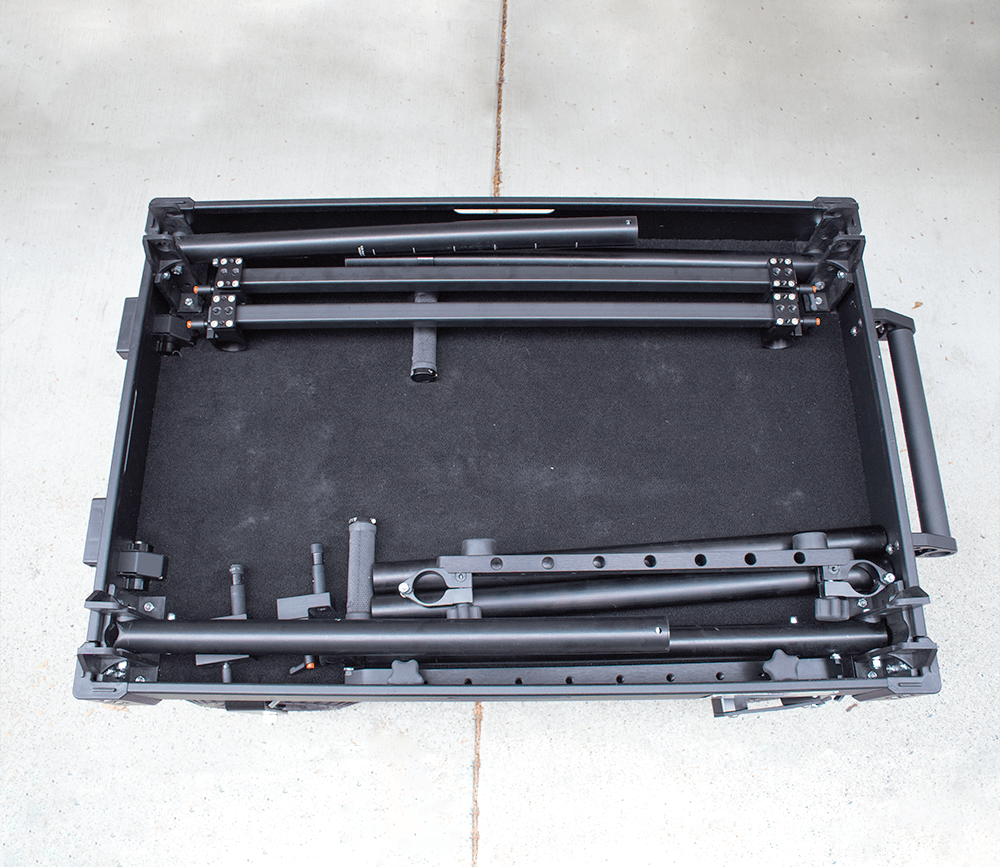

Whaley Rail II – Voyager
Packs within the Inovativ Voyager frame. Wheels can also fit, alongside the packed Whaley Rail frame.

Inovativ Voyager
Ideal for commercial DITs, Digital Techs, or for those that pack up cart often.

Whaley Rail II – Scout
Packs within the Inovativ Scout frame.

Backstage Magliner

Backstage Magliner Mounting
Through holes need to be transferred and drilled through top deck to mount cheese plate with 1/4-20 screws.

Backstage Magliner Whaley Rail

Backstage Magliner Whaley Rail
Build your DIT cart with either our Single Rail or Double Rail.

Whaley Rail II Features

Versatile Cheese Plate
Cheese Plate system can be mounted to any cart deck by drilling through holes for 1/4-20″ screws.

Independent Cross Rails
Whaley Rail II cross rails can be mounted individually and freely adjustable to set monitors and accessories at preferred height.

Release Monitor Frame Quickly
Utilize the tool-less deck post clamps to remove the Whaley Rail II monitor frame for packing or for a complex cart move.

Rail Clamp
Additional mounting patterns including 1/4-20 and 3/8-16 on front, top and bottom of clamp.

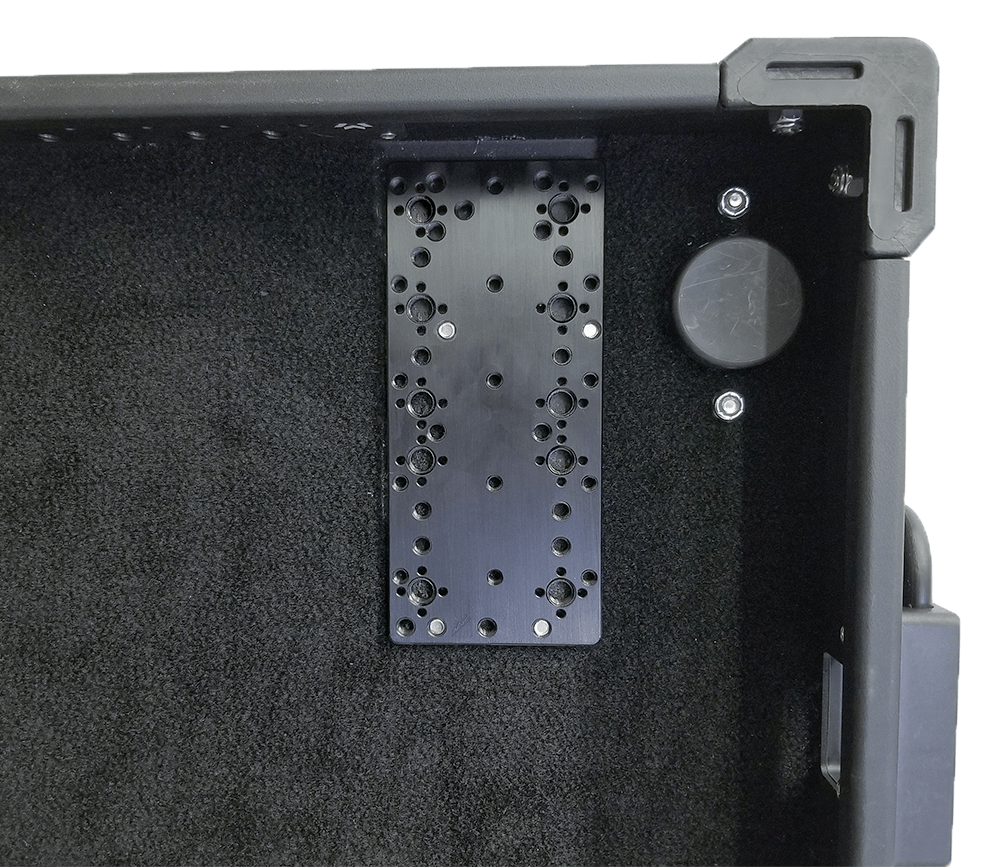

Deck Cheese Plate
Loaded with additional mounting patterns including 1/4-20, 3/8-16 and ARRI 3/8-16 Pin-Lock

Versatile Mount Options
The deck post clamp can mount via multiple mounting patterns for Packed & Studio setups and for flexible mounting options.

Respect Cart Profile
Fit accessories behind monitors to respect cart profile for tight spaces and location moves.

Versatile Rail Clamp
Quick Releases off rail with two full turns of adjustable lever. Extremely solid clamp, rated for heavy production monitors.

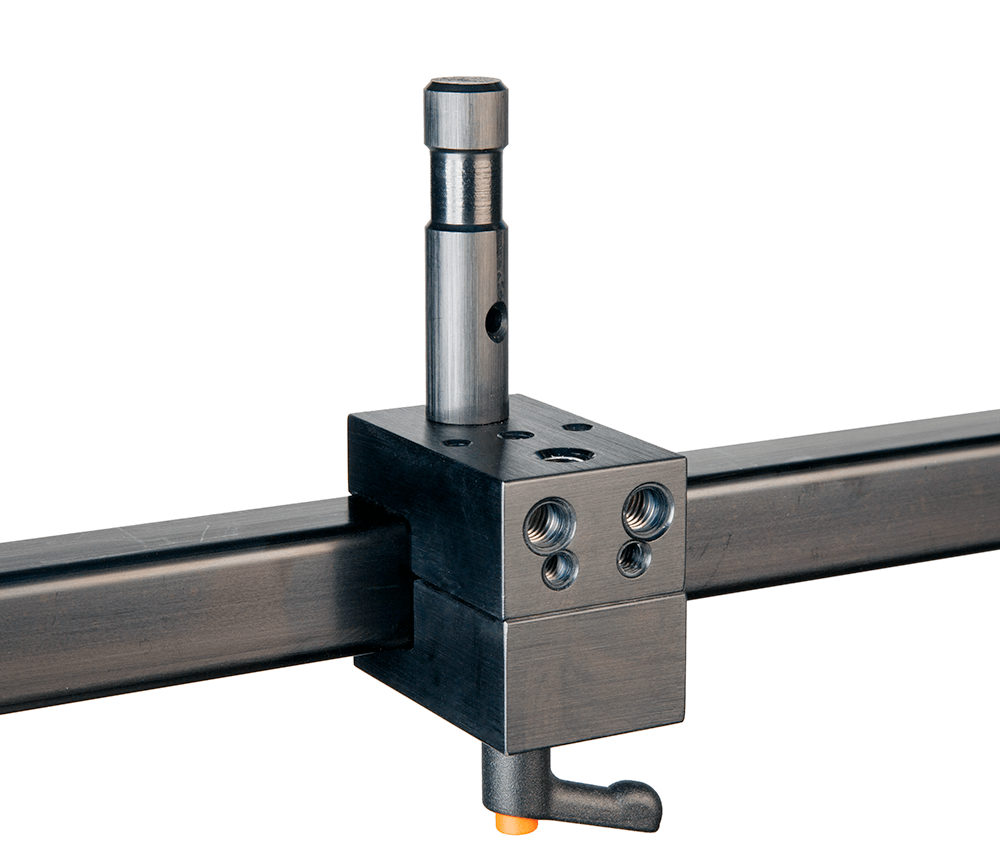

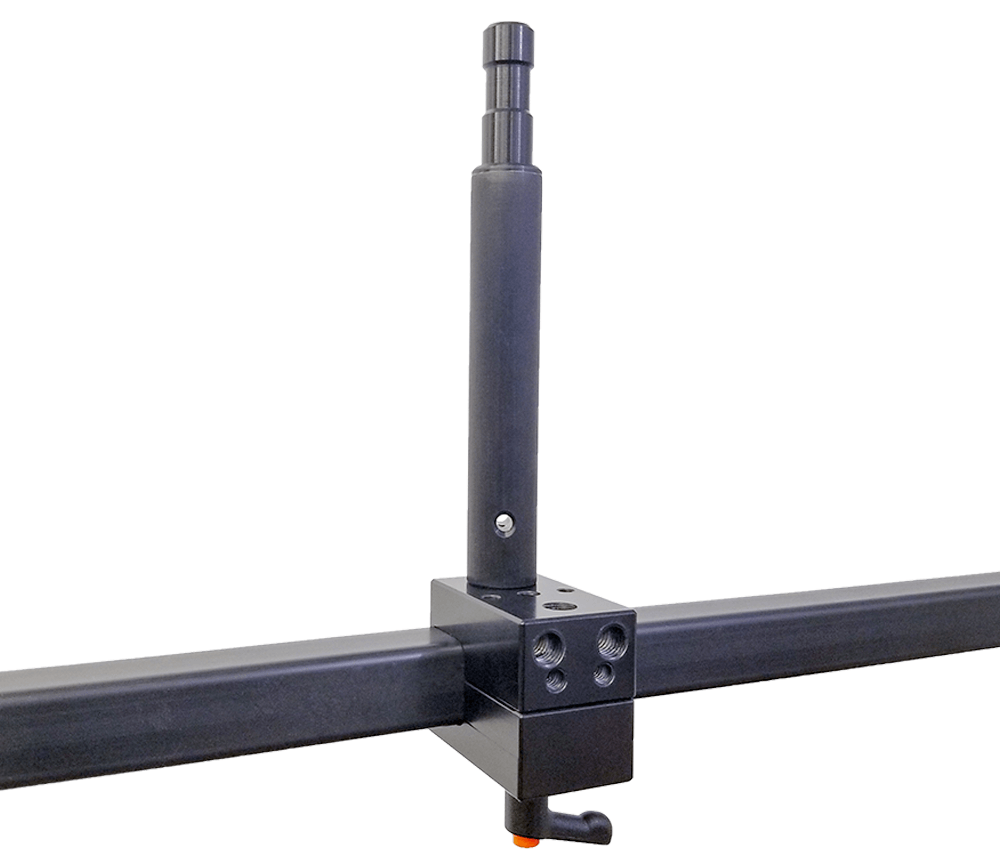

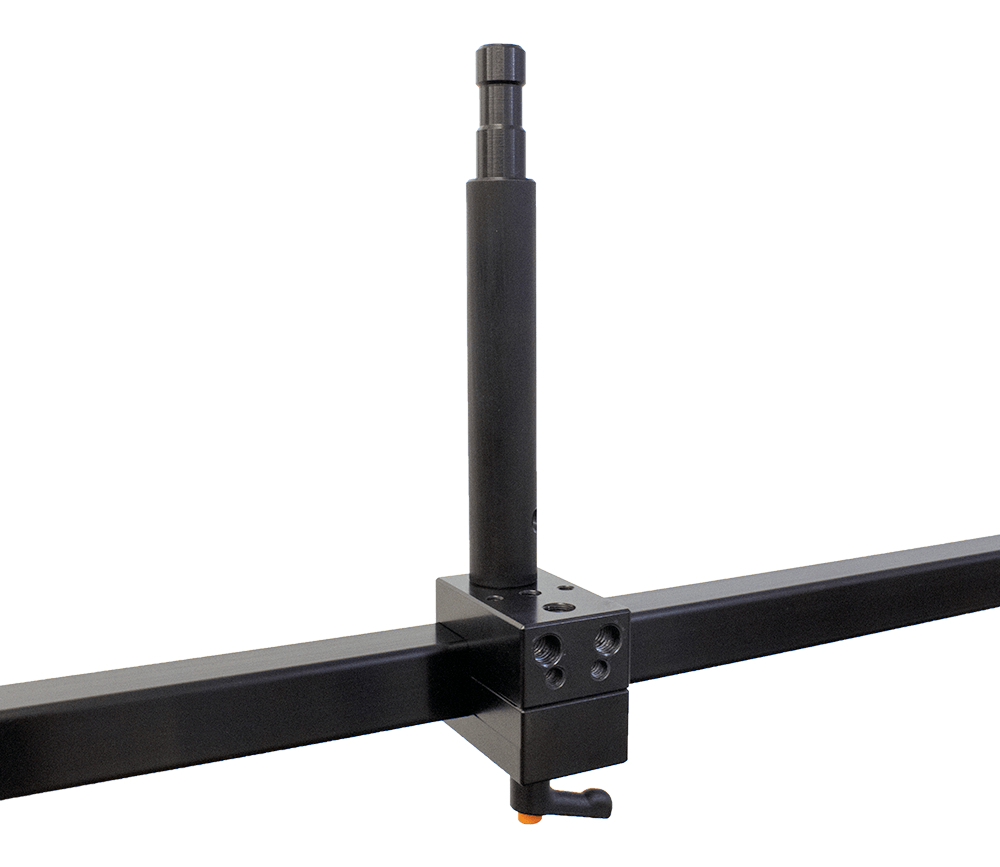

Offset or Inline Baby Pin
3/8 threaded Baby Pins mount either via male thread to offset tapped hole or via female thread using screw through Rail Clamp.

Corner Rail Clamp
Additional mounting patterns including 1/4-20 and 3/8-16.

Production Monitor & Accessory Mounting Options

Upgrade Innovations VESA Spigot Monitor Mounts
Choose from up to 16 variations of our VESA spigot monitor mount assemblies for your setup.

Attach our Mobile/Cart Rated VESA Spigot Monitor Mounts
Our innovative ball-lock hinge system is designed to secure and hold monitors during cart moves.

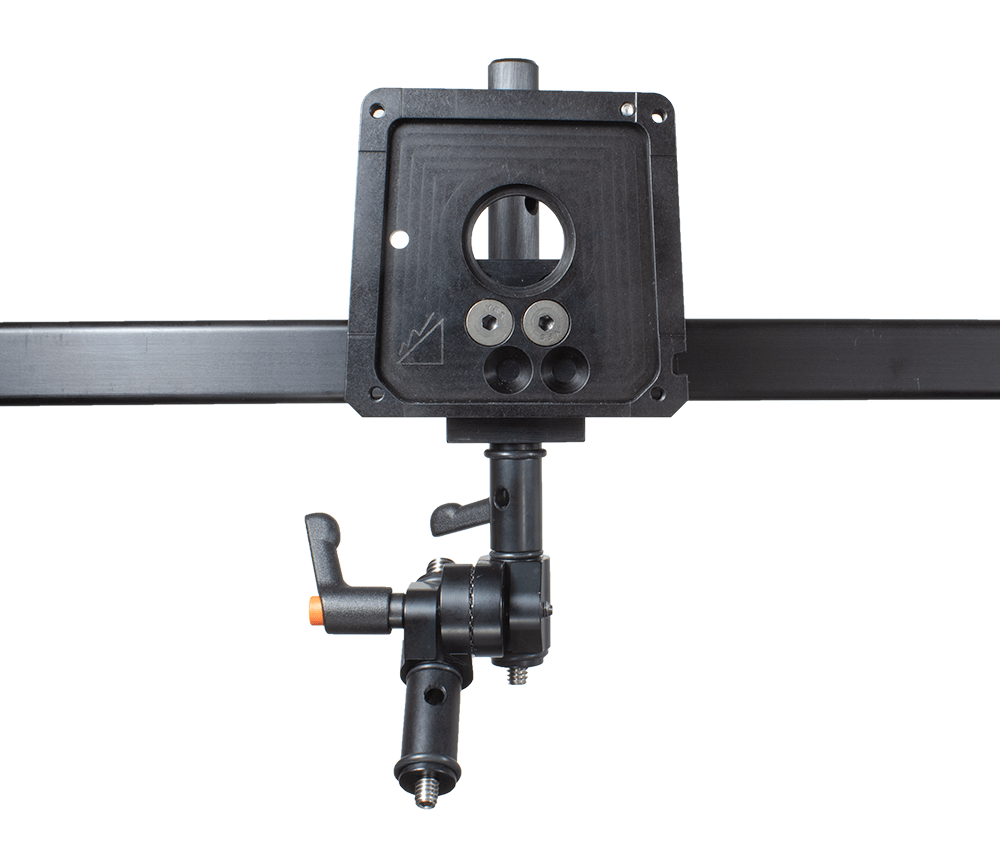

Quick Release VESA Plates
Direct mount our Quick Release or Standard VESA plates via our 1/4 VESA mounting pattern.

Vertical Post End Plug to 3/8
End Plug jams into ID of our 1.5″ Vertical Posts. Provides 3/8-16″ tapped hole.

Non-Twist 5/8 Baby Pin
Mount accessories directly to our VESA spigot monitor mounts with this non-twist 5/8 baby pin.

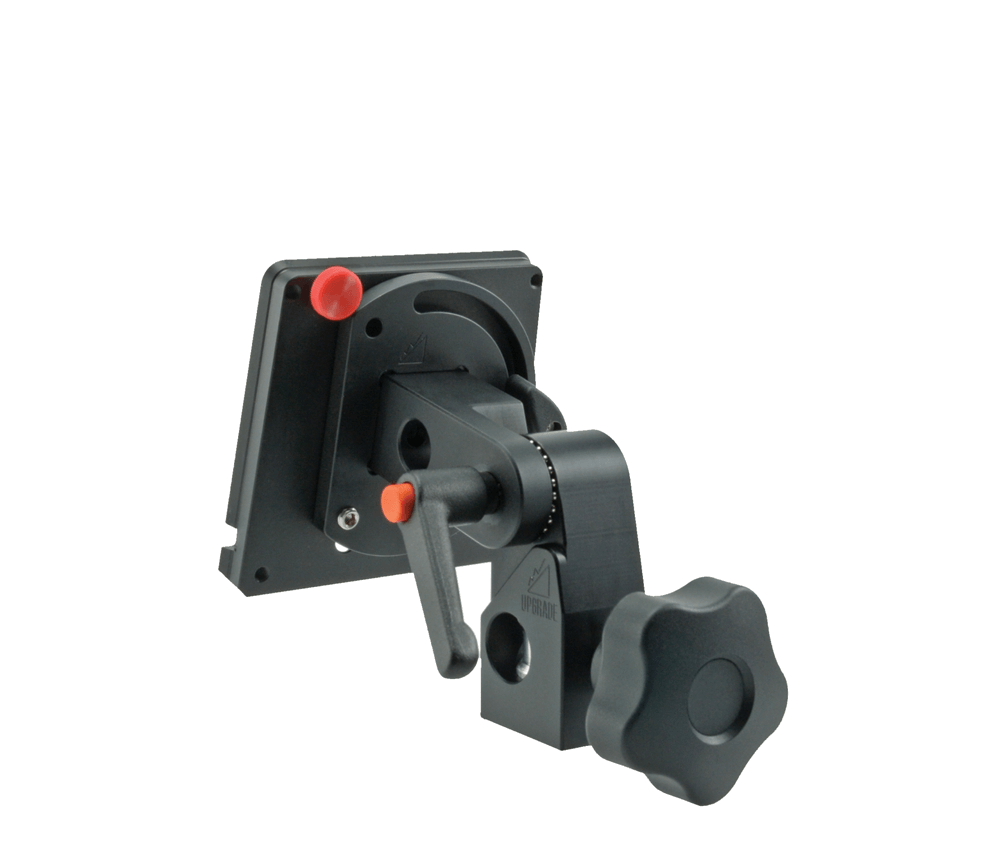

Landscape/Portrait VESA Plates
Add landscape/portrait or quick release-landscape/portrait functionality with our VESA spigot monitor mounts.

Rudy Arm – 15mm Mounting System
Industry tough articulating arm that is built for universal use.  The Rudy Arm is ideal to mount waveform monitors and scopes via 1/4 and 3/8 threads.

Additional Information

Single Rail System
Deck Cheese Plate x2
Deck Post Clamp x2
Vertical Post x2
Corner Rail Clamp x2
Rail x1
Rail Clamp to 5/8 Baby Pin x2

Double Rail System
Deck Cheese Plate x2
Deck Post Clamp x2
Vertical Post x2
Corner Rail Clamp x4
Rail x2
Rail Clamp to 5/8 Baby Pin x2

Note: Whaley Rail systems for the Inovativ Apollo cart do not require Deck Cheese Plate or Deck Post Clamp for mounting to cart. Vertical Post Adapters are provided instead.

Machined out of 6061 aluminum with stainless steel fasteners and high-quality Ganter adjustable levers.

Inovativ Echo
Packed
17” Vertical Posts
Available in Single or Double Rail Systems
Length of Cross Rail determined by Echo model size: Echo 30 – 26″, Echo 36 – 32″, Echo 48 – 46″
Weight
Echo 30 – Single Rail 3.08kg/6.79lbs
Echo 30 – Double Rail 3.51kg/7.74lbs
Echo 36Single Rail 3.18kg/7.01lbs
Echo 36 – Double Rail 4.17kg/9.19lbs
Echo 48 – Single Rail 3.39kg/7.47lbs
Echo 48 – Double Rail 4.59kg/10.12lbs
Studio
24″ Vertical Posts
Available in Single or Double Rail Systems
Length of Cross Rail determined by Echo model size: Echo 30 – 29″, Echo 36 – 35.7″, Echo 48 – 47.7″
Weight
Echo 30 – Single Rail 3.35kg/7.39lbs
Echo 30 – Double Rail 3.71kg/8.17lbs
Echo 36Single Rail 3.55kg/7.83lbs
Echo 36 – Double Rail 4.53kg/9.99lbs
Echo 48 – Single Rail 3.76kg/8.29lbs
Echo 48 – Double Rail 4.94kg/10.89lbs

Inovativ Apollo
24″ Vertical Posts
Available in Single or Double Rail Systems
Length of Cross Rail determined by Apollo model size: Apollo 40 – 39″, Apollo 52 – 51″
Weight
Apollo 40 – Single Rail 3.28kg/7.23lbs
Apollo 40 – Double Rail 4.36kg/9.61lbs
Apollo 52 – Single Rail 3.48kg/7.67lbs
Apollo 52 – Double Rail 4.77kg/10.52lbs

Inovativ Scout
24″ Vertical Posts
Available in Single or Double Rail Systems
Length of Cross Rail determined by Scout model size: Scout 37 – 29″, Scout 42 – 34″
Weight
Scout 37 – Single Rail 3.43kg/7.56lbs
Scout 37 – Double Rail 4.30kg/9.48lbs
Scout 42 – Single Rail 3.52kg/7.76lbs
Scout 42 – Double Rail 4.47kg/9.85lbs

Inovativ Voyager
24″ Vertical Posts
Available in Single or Double Rail Systems
Length of Cross Rail determined by Voyager model size: Voyager 30 – 23″, Voyager 36 – 29″, Voyager 42 – 35.7″
Weight
Voyager 30 – Single Rail 3.33kg/7.34lbs
Voyager 30 – Double Rail 4.09kg/9.02lbs
Voyager 36 – Single Rail 3.43kg/7.56lbs
Voyager 36 – Double Rail 4.30kg/9.48lbs
Voyager 42 – Single Rail 3.52kg/7.76lbs
Voyager 42 – Double Rail 4.47kg/9.85lbs

Backstage Magliner JR
24″ Vertical Posts
Available in Single or Double Rail Systems
Length of Cross Rail determined by Magliner model size: Magliner JR – 35.7″
Weight
Magliner JR – Single Rail 3.55kg/7.83lbs
Magliner JR – Double Rail 4.53kg/9.99lbs

Other Carts and Custom Builds
Contact us regarding other carts not listed and how to mount the Whaley Rail II frame to other decks.
